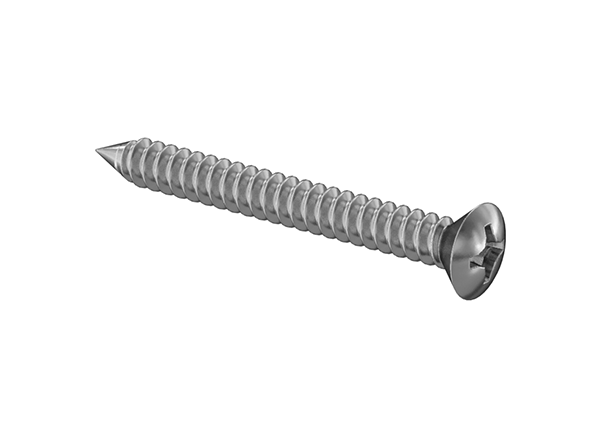

18-8 Stainless Steel Oval Head Screws for Sheet Metal - Number 12 Size, 2" Long
18-8 Stainless Steel Oval Head Screws for Sheet Metal - Number 12 Size, 2" Long
Couldn't load pickup availability
Material |
18-8 Stainless Steel |
Screw Size |
No. 12 |
Screw Size Decimal Equivalent |
0.216" |
Length |
2" |
Oval Head Profile |
Standard |
Head |
|
Diameter |
0.412" |
Height |
0.2" |
Drive Size |
No. 3 |
Drive Style |
Phillips |
Drill Bit Size |
3/16" |
Drill Bit Decimal Size Equivalent |
0.1875" |
Maximum Drilling Thickness |
0.025" |
Approximate Threads per Inch |
11 |
Thread Direction |
Right Hand |
Threading |
Fully Threaded |
Tapping Method |
Thread Forming |
Tapping Screw Type |
A |
Head Type |
Oval |
Oval Top Height |
0.117" |
Countersink Angle |
82° |
Tip Type |
Pointed |
Shank Cross Section |
Round |
System of Measurement |
Inch |
For Use In |
Sheet Metal |
RoHS |
RoHS 3 (2015/863/EU) Compliant |
REACH |
REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
DFARS |
Not Specialty Metals Compliant |
Country of Origin |
Taiwan or Thailand |
Schedule B |
731814.0000 |
ECCN |
EAR99 |
18-8 stainless steel screws have good chemical resistance may be mildly magnetic. A decorative rounded top provides a finished appearance. These screws are beveled under the head for use in countersunk holes. They penetrate 0.025" and thinner sheet metal. Length is measured from the edge of the head.
Limited lifetime warranty & returns
Limited lifetime warranty & returns
Every Moonlight Mounts product is designed and printed in-house, and it’s backed by our limited lifetime warranty: for as long as you own it, we replace manufacturing defects and missing parts free of charge and pay the shipping on the replacement. Wear parts such as suction cups and adhesive aren’t covered. Not the right fit? Returns are accepted within 30 days of delivery, including sale items: send us your order number through the contact form, and we’ll reply with approval and the return address. The full warranty terms are in our refund policy.
Highlights
- 18-8 stainless steel
- The screw that ships with our roof mounts
- No. 12 × 2" Phillips oval head
