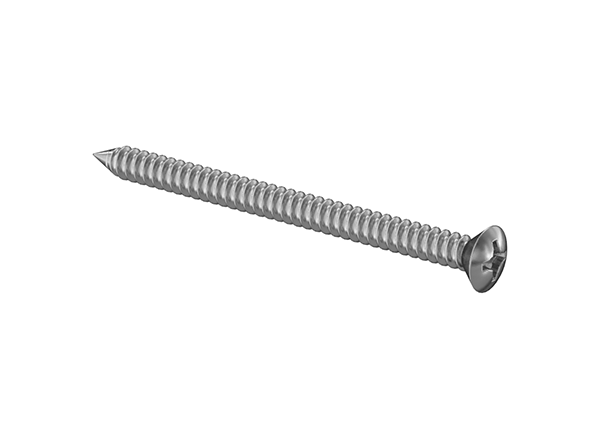

18-8 Stainless Steel Oval Head Screws for Sheet Metal - Number 12 Size, 3" Long
18-8 Stainless Steel Oval Head Screws for Sheet Metal - Number 12 Size, 3" Long
Regular price
$0.75 USD
Regular price
Sale price
$0.75 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Material |
18-8 Stainless Steel |
Screw Size |
No. 12 |
Screw Size Decimal Equivalent |
0.216" |
Length |
3" |
Oval Head Profile |
Standard |
Head |
|
Diameter |
0.412" |
Height |
0.2" |
Drive Size |
No. 3 |
Drive Style |
Phillips |
Drill Bit Size |
3/16" |
Drill Bit Decimal Size Equivalent |
0.1875" |
Maximum Drilling Thickness |
0.025" |
Approximate Threads per Inch |
11 |
Thread Direction |
Right Hand |
Threading |
Fully Threaded |
Tapping Method |
Thread Forming |
Tapping Screw Type |
A |
Head Type |
Oval |
Oval Top Height |
0.117" |
Countersink Angle |
82° |
Tip Type |
Pointed |
Shank Cross Section |
Round |
System of Measurement |
Inch |
For Use In |
Sheet Metal |
RoHS |
RoHS 3 (2015/863/EU) Compliant |
REACH |
REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
DFARS |
Not Specialty Metals Compliant |
Country of Origin |
Taiwan or Thailand |
Schedule B |
731814.0000 |
ECCN |
EAR99 |
18-8 stainless steel screws have good chemical resistance may be mildly magnetic. A decorative rounded top provides a finished appearance. These screws are beveled under the head for use in countersunk holes. They penetrate 0.025" and thinner sheet metal. Length is measured from the edge of the head.
