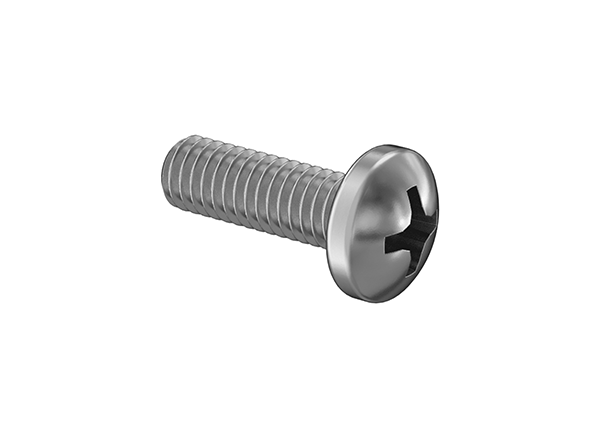

316 Stainless Steel Pan Head Phillips Screw - M4 x 0.70 mm Thread, 12mm Long
316 Stainless Steel Pan Head Phillips Screw - M4 x 0.70 mm Thread, 12mm Long
Couldn't load pickup availability
|
Thread Size
|
M4 |
|
Thread Pitch
|
0.7 mm |
|
Length
|
12 mm |
|
Threading
|
Fully Threaded |
|
Head Diameter
|
8.00 mm |
|
Head Height
|
3.20 mm |
|
Drive Style
|
Phillips |
|
Drive Size
|
No. 2 |
|
Material
|
316 Stainless Steel |
|
Finish
|
Passivated |
|
Hardness
|
Not Rated |
|
Tensile Strength
|
70,000 psi |
|
Thread Type
|
Metric |
|
Thread Spacing
|
Coarse |
|
Thread Fit
|
Class 6g |
|
Thread Direction
|
Right Hand |
|
Head Type
|
Rounded |
|
Rounded Head Style
|
Pan |
|
Rounded Head Profile
|
Standard |
|
System of Measurement
|
Metric |
|
Specifications Met
|
DIN 7985 |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
|
DFARS
|
Not Specialty Metals Compliant |
|
Country of Origin
|
Taiwan |
|
Schedule B
|
731815.9000 |
|
ECCN
|
EAR99 |
316 stainless steel screws resist corrosion from chemicals and salt water better than 18-8 stainless steel screws. These screws may be mildly magnetic. Length is measured from under the head.
Passivated stainless steel screws provide added protection against oxidation and corrosion.
Limited lifetime warranty & returns
Limited lifetime warranty & returns
Every Moonlight Mounts product is designed and printed in-house, and it’s backed by our limited lifetime warranty: for as long as you own it, we replace manufacturing defects and missing parts free of charge and pay the shipping on the replacement. Wear parts such as suction cups and adhesive aren’t covered. Not the right fit? Returns are accepted within 30 days of delivery, including sale items: send us your order number through the contact form, and we’ll reply with approval and the return address. The full warranty terms are in our refund policy.
Highlights
- 316 stainless steel, passivated
- M4 × 0.7 mm × 12 mm pan head
- Sold individually
