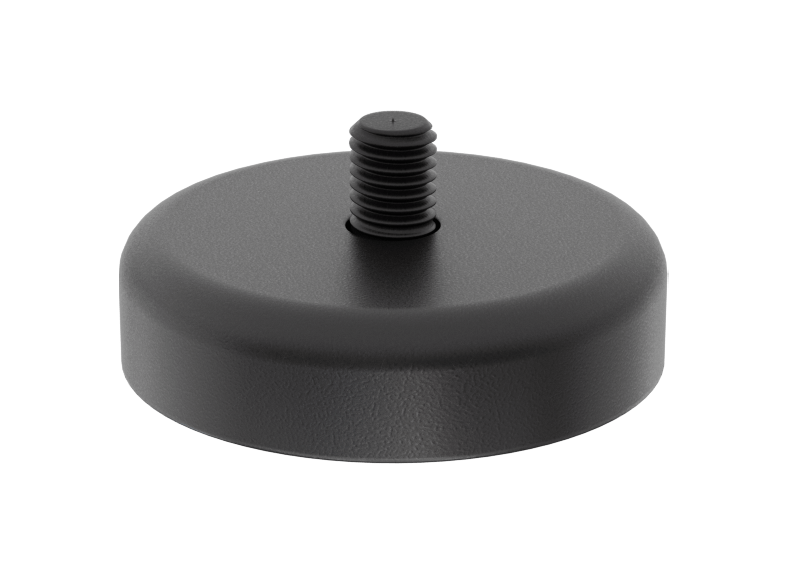

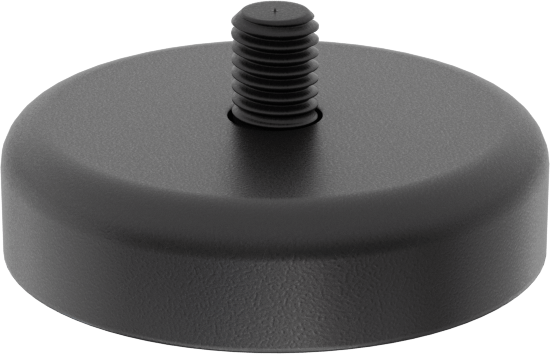

Encased Ceramic Magnet - Threaded Stud, Coated Steel Case, 13mm Thick, 50.8mm OD
Encased Ceramic Magnet - Threaded Stud, Coated Steel Case, 13mm Thick, 50.8mm OD
Couldn't load pickup availability
Which magnet do I need? This 50.8 mm (2") steel-cased magnet is a replacement for earlier Starlink Mini Hybrid Mounts, Magnetic Mounts and Magnetic Enclosures that have steel-cased magnets. If your mount's magnets are black and rubber-coated, order the 65 lb rubber-coated neodymium magnet (about 66 mm or 2.6" across, for the Magnetic Mount and Magnetic Enclosure) or the 33.5 lb rubber-coated neodymium magnet (about 43 mm or 1.7" across, for the Hybrid Mount) instead.
|
Shape
|
Disc |
|
Mount Type
|
Threaded Stud |
|
Thickness
|
13mm |
|
Thickness Tolerance
|
-1.5mm to 1.5mm |
|
OD
|
50.8mm |
|
OD Tolerance
|
-1.52mm to 1.52mm |
|
Stud Length
|
10mm |
|
Overall Length
|
23mm |
|
Maximum Pull
|
48 lbs. |
|
Sets of Poles
|
1 |
|
Min. Temperature
|
-20° F |
|
Maximum Temperature
|
120° F |
|
Magnet Grade
|
C8 |
|
Material
|
Ceramic (Ferrite) |
|
Case Material
|
Powder-Coated Steel |
|
Color
|
Black |
|
Thread Size
|
M8 |
|
Thread Pitch
|
1.25 mm |
|
Maximum Energy Product
|
Not Rated |
|
Flux Density
|
3,900 G |
|
Fabrication
|
Sintered |
|
System of Measurement
|
Metric |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
Peoples Republic of China |
|
Schedule B
|
850519.0000 |
|
ECCN
|
EAR99 |

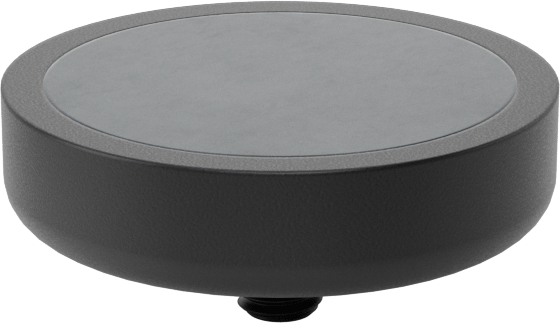

A steel case concentrates and focuses the magnetic field. It also protects the magnetic material.
Warning: Maximum pull ratings are based on direct contact with rust-free and unpainted iron plate. Variations in material condition will significantly reduce these ratings. Do not use for lifting over people.
Included:
- 1x Encased Ceramic Magnet - Threaded Stud, Coated Steel Case, 13mm Thick, 50.8mm OD
Limited lifetime warranty & returns
Limited lifetime warranty & returns
Every Moonlight Mounts product is designed and printed in-house, and it’s backed by our limited lifetime warranty: for as long as you own it, we replace manufacturing defects and missing parts free of charge and pay the shipping on the replacement. Wear parts such as suction cups and adhesive aren’t covered. Not the right fit? Returns are accepted within 30 days of delivery, including sale items: send us your order number through the contact form, and we’ll reply with approval and the return address. The full warranty terms are in our refund policy.
Highlights
- 48 lb maximum pull
- Fits our earlier mounts with steel-cased magnets
- M8 threaded stud, powder-coated steel case
