Starlink Standard 4 Gen 3 Hail Guard & Impact Resistant Shield - Residential UTA-232 Rev4 Standard
Starlink Standard 4 Gen 3 Hail Guard & Impact Resistant Shield - Residential UTA-232 Rev4 Standard
Couldn't load pickup availability

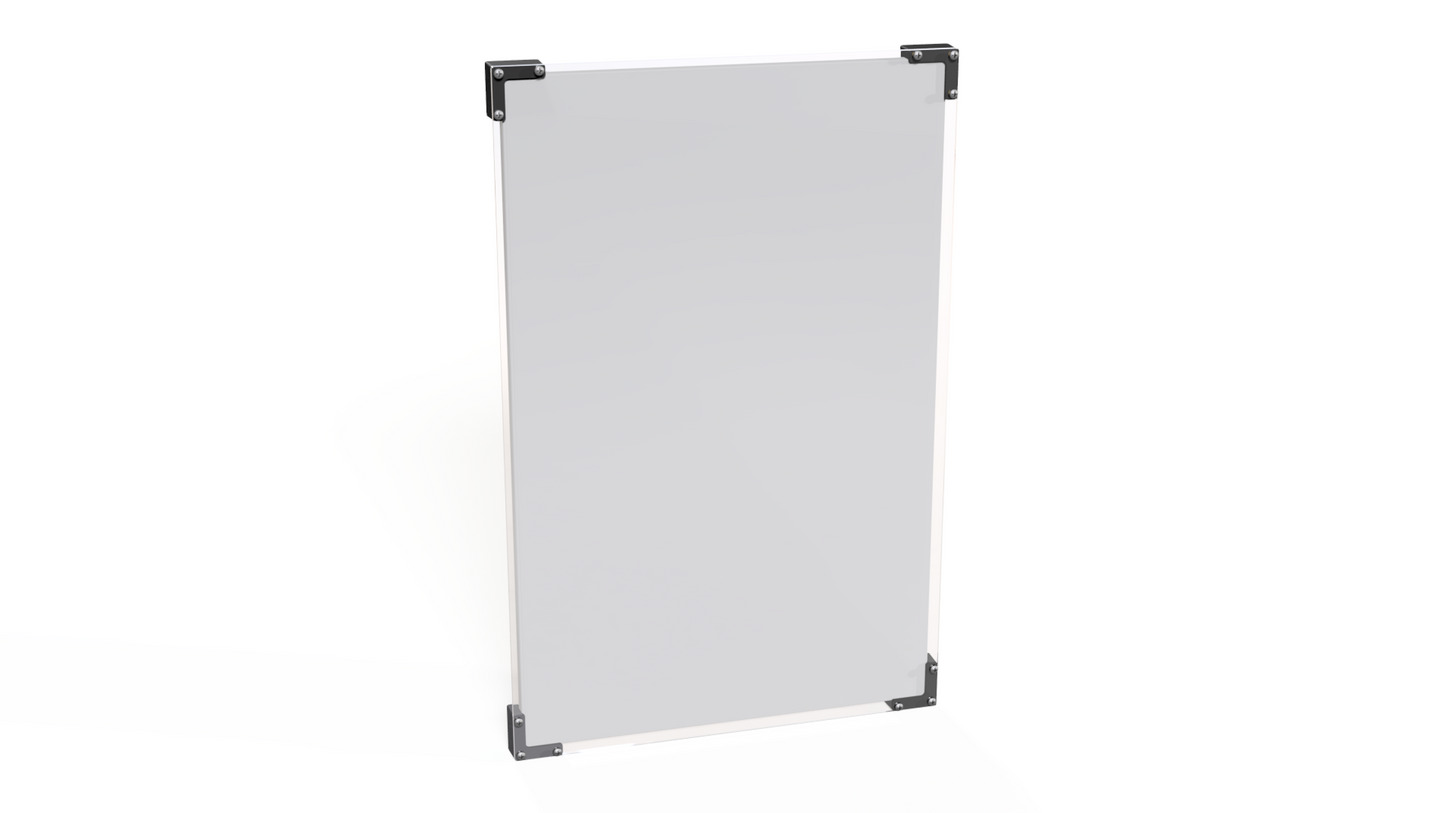

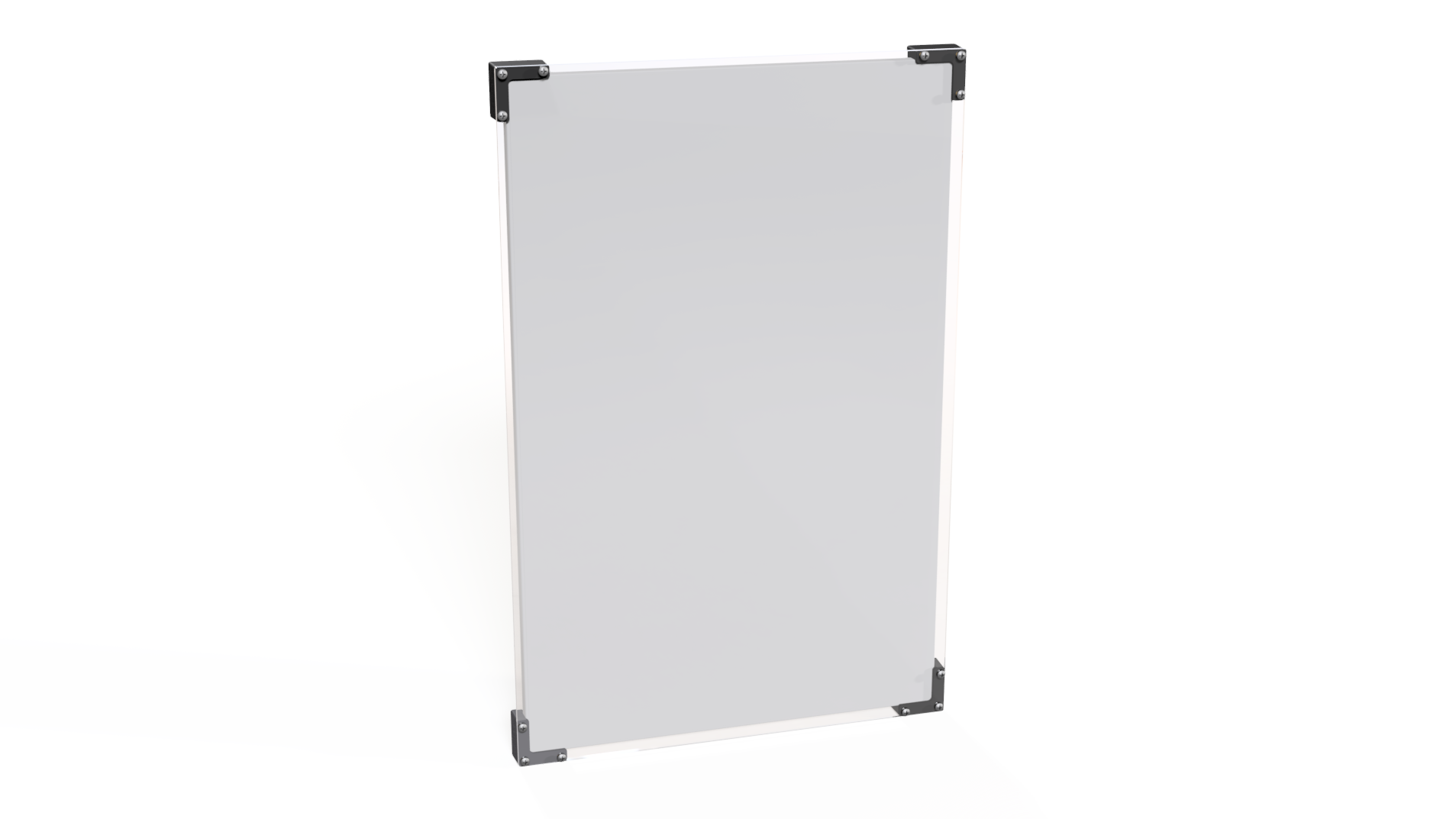

Protect your Starlink Standard 4 Gen 3 dish with our USA-made Starlink Gen 3 hail guard. Features a 4.5mm thick polycarbonate shield (similar to Lexan®) and UV-resistant ASA corners for maximum protection against hail, debris, and environmental hazards.
⚠️ Not compatible with our Starlink Gen 3 Surface Mount.
Key Features
- 4.5mm Polycarbonate Shield: Thicker than competitors, similar to Lexan®
- 3mm Air Gap: Allows airflow between dish and shield
- 18 Custom Colors: Personalize to match your setup
- UV-Resistant ASA: Won't yellow or degrade in sunlight
- Weather-Resistant: Built for storm season and beyond
Specifications
Shield Size: 610mm x 399mm x 4.5mm (24" x 15.7")
Assembled Height: 47mm (1.85")
Materials: UV-resistant ASA frame, 4.5mm polycarbonate shield, brass heat-set inserts
Hardware: M4 Phillips head screws
What's Included
- 4.5mm clear polycarbonate sheet
- 4x Corner brackets (choose your color)
- 12x M4 Phillips head screws (12mm)
- Pre-assembled and ready to install
Compatibility
Designed for Starlink Gen 3 Rev4 Standard UTA-232 (sold separately). Suitable for outdoor installation in all weather conditions.
Installation
Installation
- Remove two corner pieces (6 screws total) with a Phillips head screwdriver

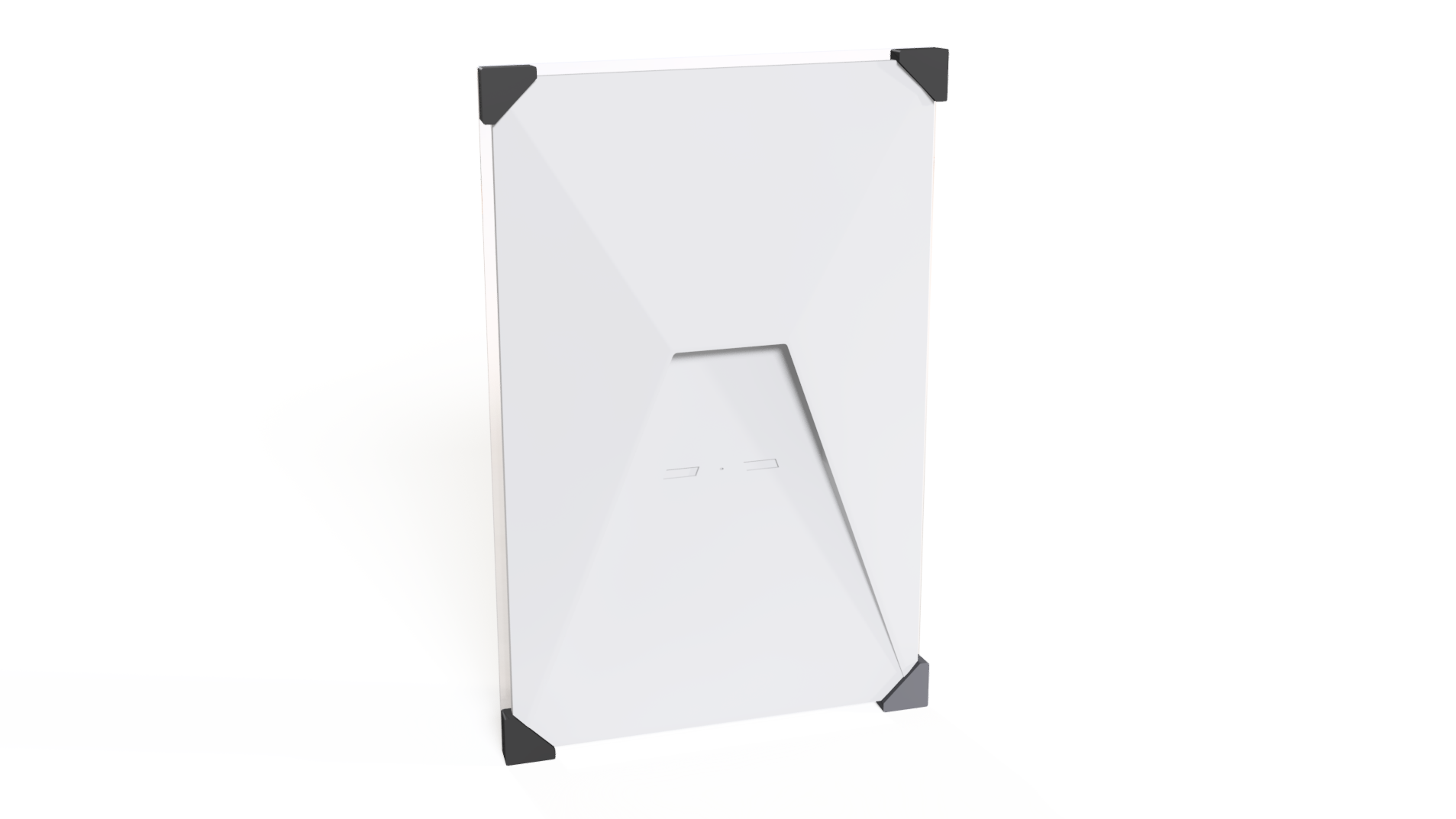

- Insert your Starlink Gen 3 dish
- Reattach corners in numbered positions (facing back of dish):
- Part 1 = Top-Left
- Part 2 = Top-Right
- Part 3 = Bottom-Left
- Part 4 = Bottom-Right
Designed and Printed In-House
Designed and Printed In-House
Every Moonlight Mounts product is designed and 3D printed in-house just outside Atlanta, Georgia, backed by 12+ years of 3D printing experience. Made in the USA — produced in 1–3 business days, with spare parts available individually.
What owners say
What owners say
-
Seems like a quality product. Fit great once I realized each corner piece is custom shaped for a specific corner of the starlink dish. Haven't been through any severe storms yet to see how well it protects.
— Donald B.
-
Fantastic customer service
— Heather C.
Frequently asked questions
Frequently asked questions
What does it protect against?
What does it protect against?
Hail, falling debris, and impacts. The shield is 4.5 mm polycarbonate — the same family of material as Lexan — with a 3 mm air gap so airflow still reaches the dish.
Can I use it together with the Gen 3 roof mount?
Can I use it together with the Gen 3 roof mount?
No — both products occupy the dish's corners, so it's one or the other. Choose the hail guard for impact protection or the roof mount for a permanent bolted installation.
How do I install the dish?
How do I install the dish?
Remove two corner pieces (six screws), insert your Gen 3 dish, and reattach the corners in their numbered positions. It arrives pre-assembled.
Can it stay outside year-round?
Can it stay outside year-round?
Yes. The ASA frame is UV-resistant and won't yellow or degrade in sunlight, and the guard is designed for outdoor installation in all weather.
Is a 3D-printed mount strong enough?
Is a 3D-printed mount strong enough?
Yes. Strength in a printed part comes from how thick its walls are and how much material is inside, and ours are built well beyond a typical hobby print: every part is printed in UV-resistant ASA with solid outer walls about 2.5 mm thick (six passes of material around every edge), a dense 75% internal fill, and solid top and bottom surfaces. Every design is tested in real-world conditions by full-time travelers.
Where is it made?
Where is it made?
Every mount is designed and printed in-house just outside Atlanta, Georgia, from UV-resistant ASA.
Our guarantee
Our guarantee
Every Moonlight Mounts product is designed and printed in-house. Manufacturing defects and missing parts are replaced free of charge, with no time limit. Not the right fit? Returns are accepted within 30 days of delivery, including sale items: send us your order number through the contact form, and we’ll reply with approval and the return address. See our refund policy for details.
Highlights
- Designed & printed in-house near Atlanta, Georgia
- 4.5 mm polycarbonate shield
- 3 mm air gap keeps airflow over the dish
- Brass heat-set inserts
- UV-resistant ASA in 18 colors
Specifications
| Fits | Starlink Standard 4 Gen 3 (UTA-232 / Rev4, dish sold separately) |
|---|---|
| Shield | 4.5 mm polycarbonate, 610 × 399 mm (24 × 15.7 in) |
| Air gap | 3 mm between dish and shield for airflow |
| Assembled height | 47 mm (1.85 in) |
| Hardware | 12× M4 Phillips head screws (12 mm), brass heat-set inserts |
| Compatibility note | Not compatible with the Gen 3 flat roof mount |
| Material | UV-resistant ASA frame, polycarbonate shield |
| Construction | Solid outer walls about 2.5 mm thick (six passes of material around every edge), a dense 75% internal fill, and solid top and bottom surfaces — far heavier-built than a typical hobby print |
| Made in | Designed and printed in-house near Atlanta, Georgia, USA |
