Starlink Mini Roof Mount - Flat Surface Installation Kit (UV Protected)
Starlink Mini Roof Mount - Flat Surface Installation Kit (UV Protected)
Couldn't load pickup availability
Permanently mount your Starlink Mini to any roof with our USA-made Starlink Mini roof mount. Low-profile design allows natural airflow to keep your dish cool, unlike enclosed systems. Compatible with shingle, metal, and flat roofs.
Key Features
- Low-Profile Design: Blends with your roofline, allows airflow
- Universal Roof Compatibility: Shingle, metal, and flat roofs
- Weather-Resistant: UV-protected ASA + stainless steel hardware
- Secure Mounting: Stable in high winds and harsh weather
Roof orientation: This mount holds the dish flat against the roof, so your roof decides where the dish points. Starlink dishes aim at the part of the sky with the most satellites, which in the US means toward the north, tilted about 20 degrees, and the Starlink app asks you to rotate the dish to within a few degrees of that target. Flat roofs on houses, RVs, and vans work well: rotate the mount to match the app's target before you screw it down. A north-facing roof slope is close to ideal. A roof that slopes toward the south tilts the dish away from the satellites and puts the ridge in its view, so expect obstruction dropouts and a misaligned alert. Before ordering, set the dish where the mount will go and run the Starlink app's obstruction check.
Specifications

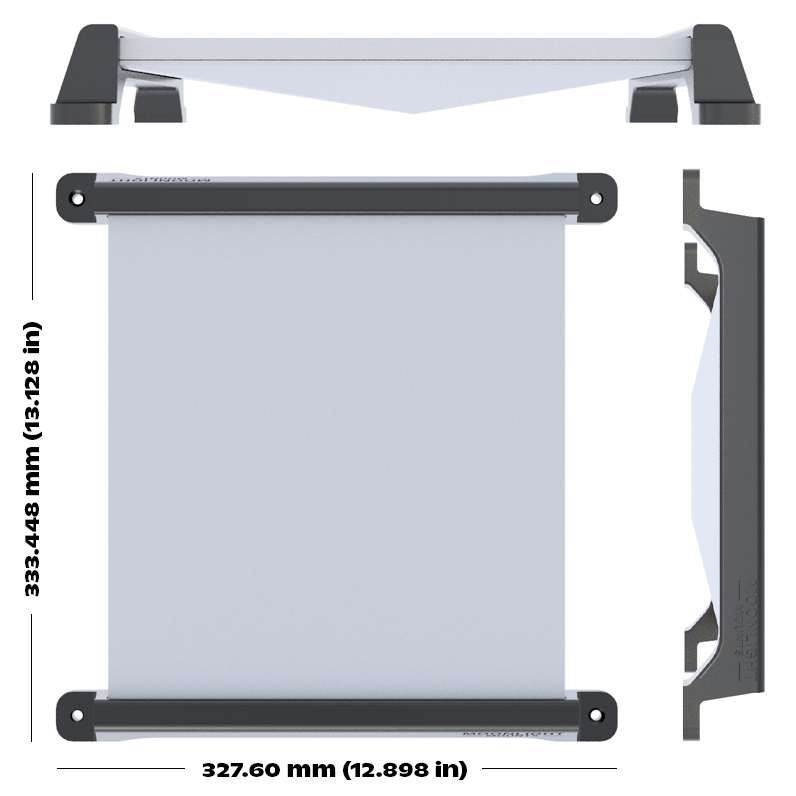

Dimensions: 333mm x 328mm x 50mm (13.1" x 12.9" x 2")
Screw Holes: 7mm diameter
Material: UV-resistant ASA
Fits: Starlink Mini (sold separately)
What's Included
- 2x ASA mount brackets (choose your color)
- 4x 18-8 stainless steel oval head screws (#12 x 2")
Installation
Installation
- Choose a location with clear sky view
- Attach one bracket using #12 screws and sealant
- Slide your Starlink Mini into the mounted bracket
- Attach second bracket and secure with screws and sealant
- Apply sealant around all mounting points for waterproofing
Note: Do not over-tighten screws. Professional installation recommended.
Recommended Sealant
Use Pro Flex RV Flexible Sealant for optimal waterproofing and long-lasting adhesion.
Designed and Printed In-House
Designed and Printed In-House
Every Moonlight Mounts product is designed and 3D printed in-house just outside Atlanta, Georgia, backed by 12+ years of 3D printing experience. Made in the USA — produced in 1–3 business days, with spare parts available individually.
What owners say
What owners say
-
Outstanding product - Outstanding customer service. I would not hesitate to recommend this product to anyone!
— Justin T.
-
Ordered on Friday, received on Monday! Super, super fast shipping, incredible customer service, super fast communication, and the product is really great quality!! Very much appreciated. If I run into anyone looking for a starlink mini mount, I will for sure send them your way. Thank you again!
— Justin
-
Exactly what I was looking for! Thanks
— chris a.
Frequently asked questions
Frequently asked questions
What roofs does it work on?
What roofs does it work on?
Shingle, metal, and flat roofs. Choose a spot with a clear view of the sky.
Which way does my roof need to face?
Which way does my roof need to face?
This mount holds the dish flat against the roof, so your roof decides where the dish points. Starlink dishes aim at the part of the sky with the most satellites, which in the US means toward the north, tilted about 20 degrees, and the Starlink app asks you to rotate the dish to within a few degrees of that target. Flat roofs on houses, RVs, and vans work well: rotate the mount to match the app's target before you screw it down. A north-facing roof slope is close to ideal. A roof that slopes toward the south tilts the dish away from the satellites and puts the ridge in its view, so expect obstruction dropouts and a misaligned alert. Before ordering, set the dish where the mount will go and run the Starlink app's obstruction check.
Is this a permanent installation?
Is this a permanent installation?
Yes. The mount bolts down with stainless steel screws and stays put — it's the right choice when the dish lives in one place. Seal around the mounting points for waterproofing.
What sealant should I use?
What sealant should I use?
A flexible exterior sealant such as Pro Flex RV Flexible Sealant, applied under and around each mounting point. Don't over-tighten the screws, and consider professional installation.
Will the dish overheat in an enclosure like this?
Will the dish overheat in an enclosure like this?
This is an open mount, not an enclosure — the low-profile design leaves the dish in natural airflow to keep it cool.
Is a 3D-printed mount strong enough?
Is a 3D-printed mount strong enough?
Yes. Strength in a printed part comes from how thick its walls are and how much material is inside, and ours are built well beyond a typical hobby print: every part is printed in UV-resistant ASA with solid outer walls about 2.5 mm thick (six passes of material around every edge), a dense 75% internal fill, and solid top and bottom surfaces. Every design is tested in real-world conditions by full-time travelers.
Where is it made?
Where is it made?
Every mount is designed and printed in-house just outside Atlanta, Georgia, from UV-resistant ASA.
Limited lifetime warranty & returns
Limited lifetime warranty & returns
Every Moonlight Mounts product is designed and printed in-house, and it’s backed by our limited lifetime warranty: for as long as you own it, we replace manufacturing defects and missing parts free of charge and pay the shipping on the replacement. Wear parts such as suction cups and adhesive aren’t covered. Not the right fit? Returns are accepted within 30 days of delivery, including sale items: send us your order number through the contact form, and we’ll reply with approval and the return address. The full warranty terms are in our refund policy.
Highlights
- Designed & printed in-house near Atlanta, Georgia
- Permanent bolt-down installation
- 18-8 stainless steel hardware included
- Low-profile design keeps natural airflow
- UV-resistant ASA
Specifications
| Compatible device | Starlink Mini (dish sold separately) |
|---|---|
| Dimensions | 333 × 328 × 50 mm (13.1 × 12.9 × 2 in) |
| Roof compatibility | Shingle, metal, and flat roofs |
| Roof orientation | Flat roofs and north-facing slopes (US). A south-facing slope tilts the dish away from the satellites — expect dropouts. Run the Starlink app's obstruction check at the spot before ordering |
| Screw holes | 7 mm diameter |
| Hardware | 2× 18-8 stainless steel oval head screws (#12 × 2") |
| Material | UV-resistant ASA |
| Construction | Solid outer walls about 2.5 mm thick (six passes of material around every edge), a dense 75% internal fill, and solid top and bottom surfaces — far heavier-built than a typical hobby print |
| Made in | Designed and printed in-house near Atlanta, Georgia, USA |
