Starlink Mini Hybrid Mount - Magnetic & Surface Mount System (UV Protected)
Starlink Mini Hybrid Mount - Magnetic & Surface Mount System (UV Protected)
Couldn't load pickup availability
Introducing the Starlink Mini hybrid mount - a revolutionary mounting system that brings unprecedented flexibility to your Starlink Mini installation. Engineered with precision and designed for maximum adaptability, this mount transforms your satellite internet setup, using screw-in direct mount or magnetic attachment.
Key Features:
- Dual Mounting Options: Choose between direct surface mounting or magnetic attachment
- Robust Construction: Manufactured from high-performance ASA polymer
- Quick-Release Mechanism: Easy installation and removal
- Corrosion-Resistant: Designed for harsh environments and extreme conditions
Mounting Options:
Direct Surface Mounting:
- Four 7mm screw holes
- Compatible with most flat surfaces
- Secure mechanical attachment
Magnetic Mount Option:

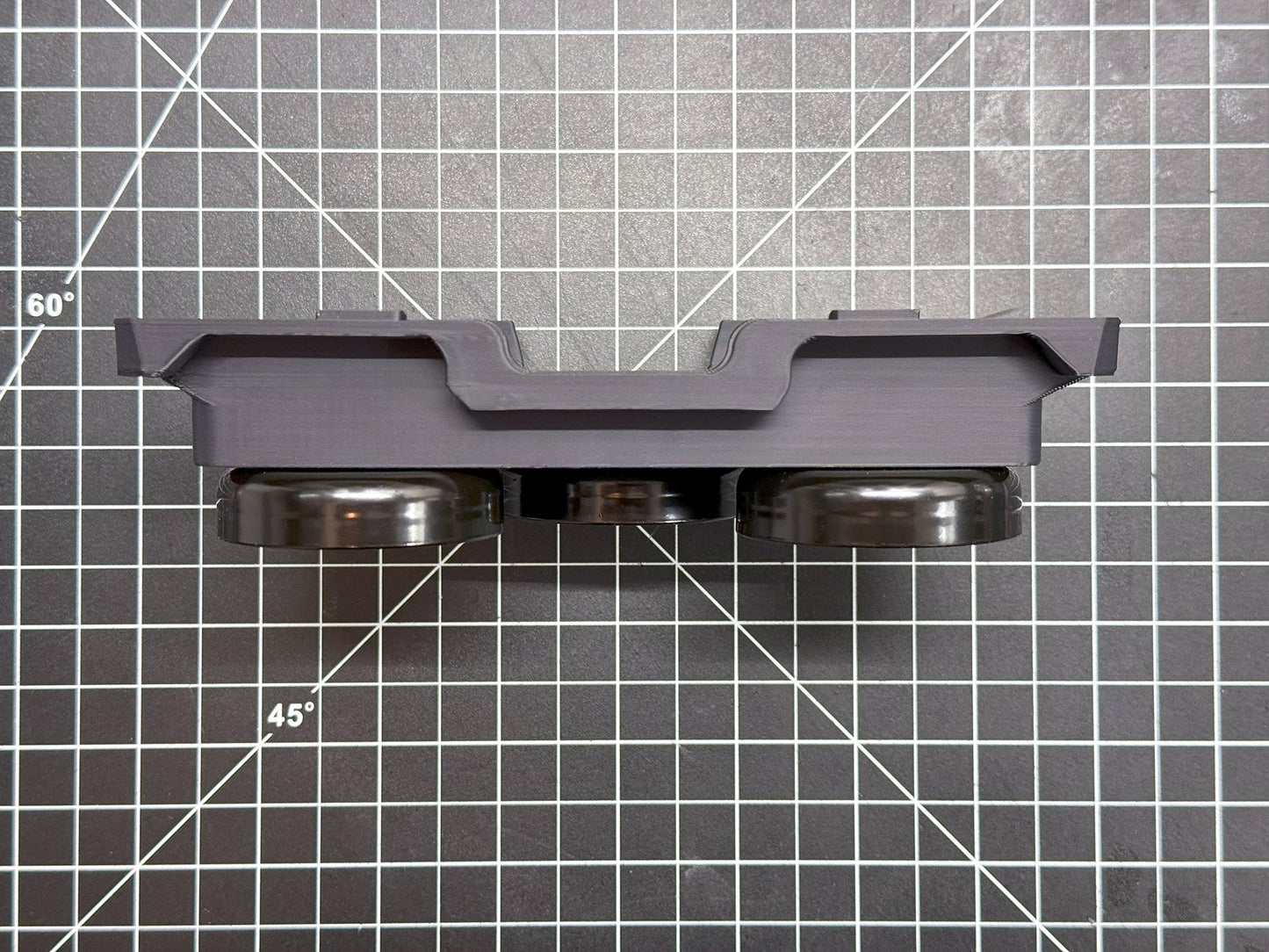

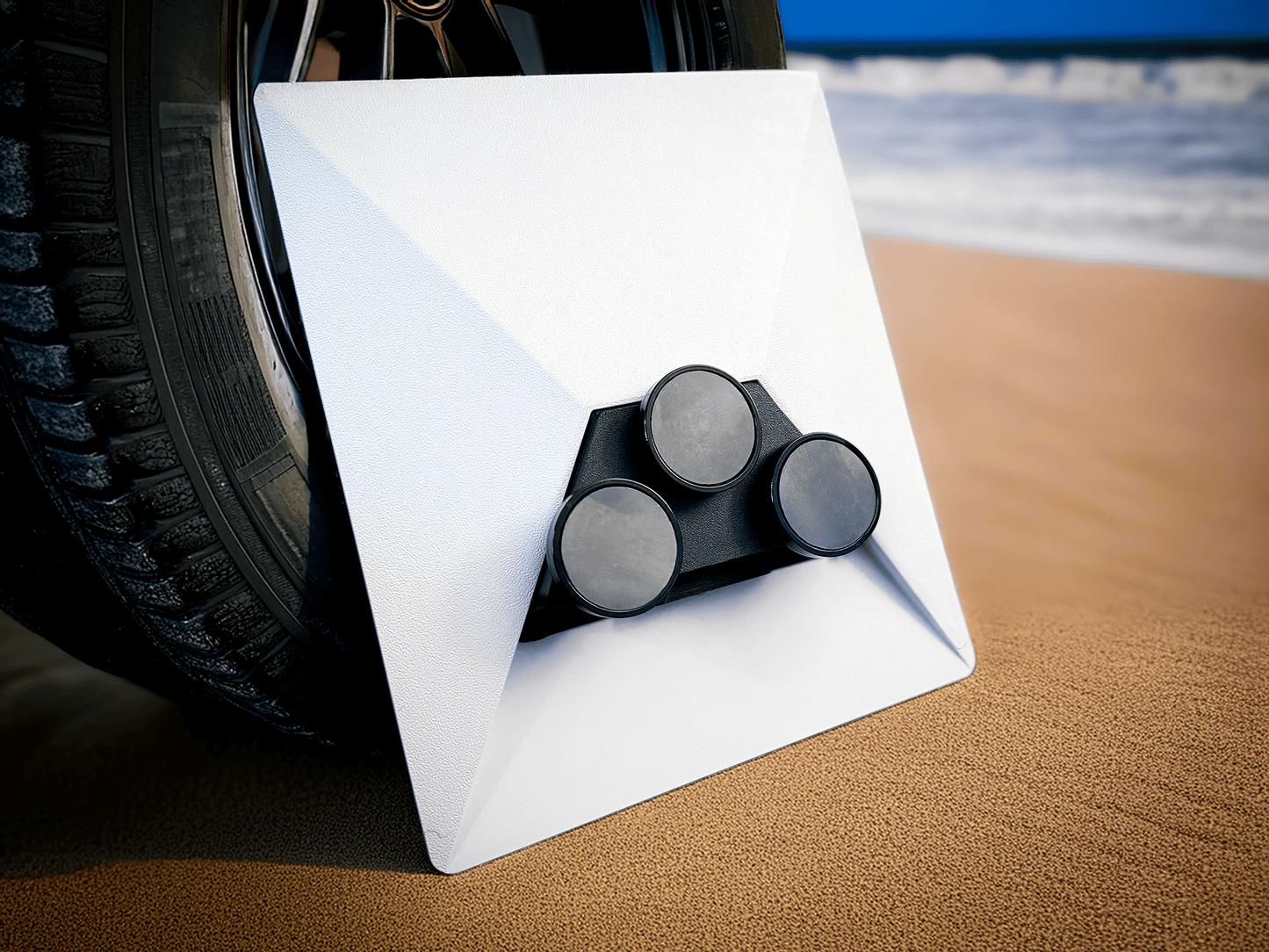

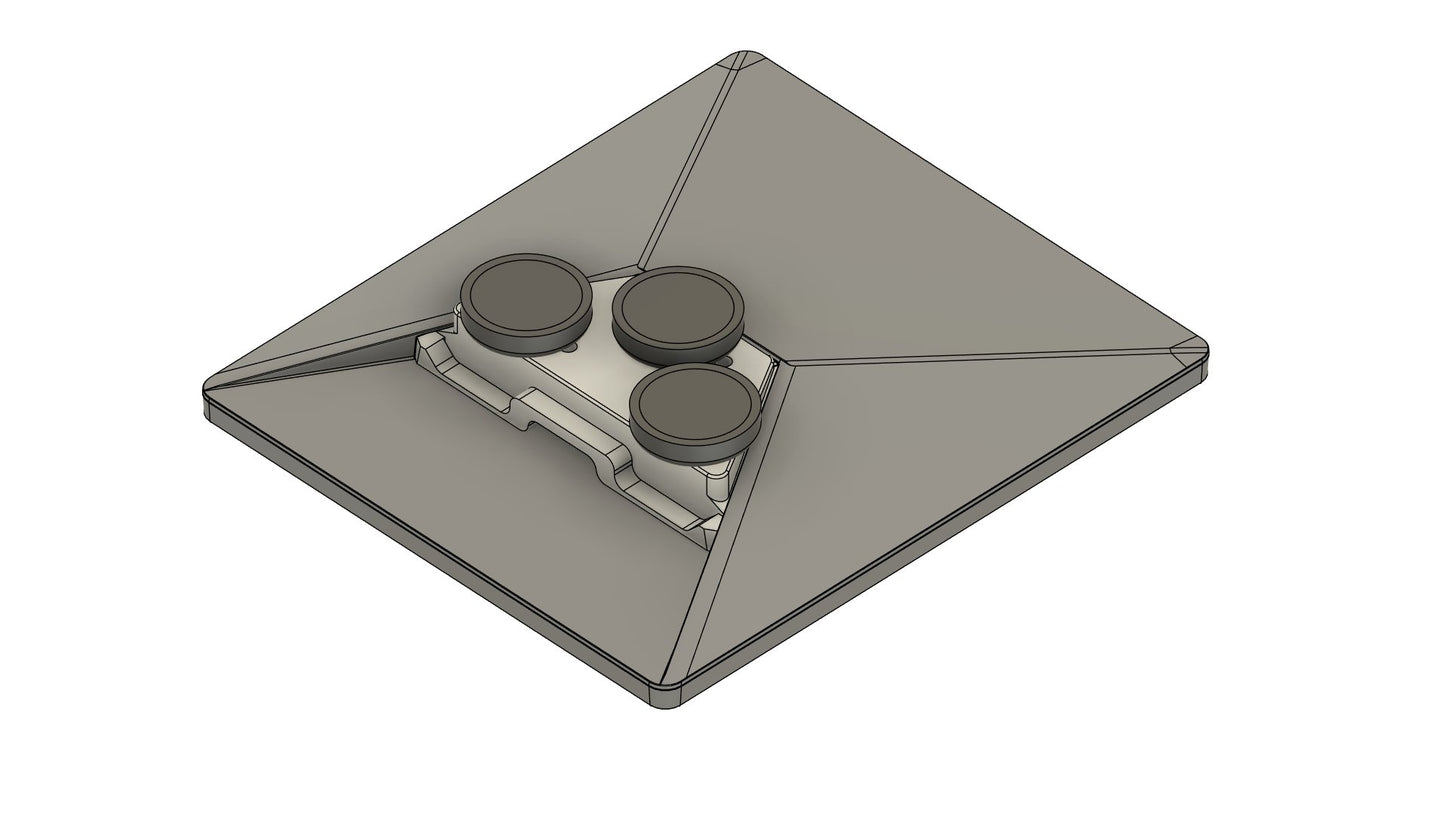

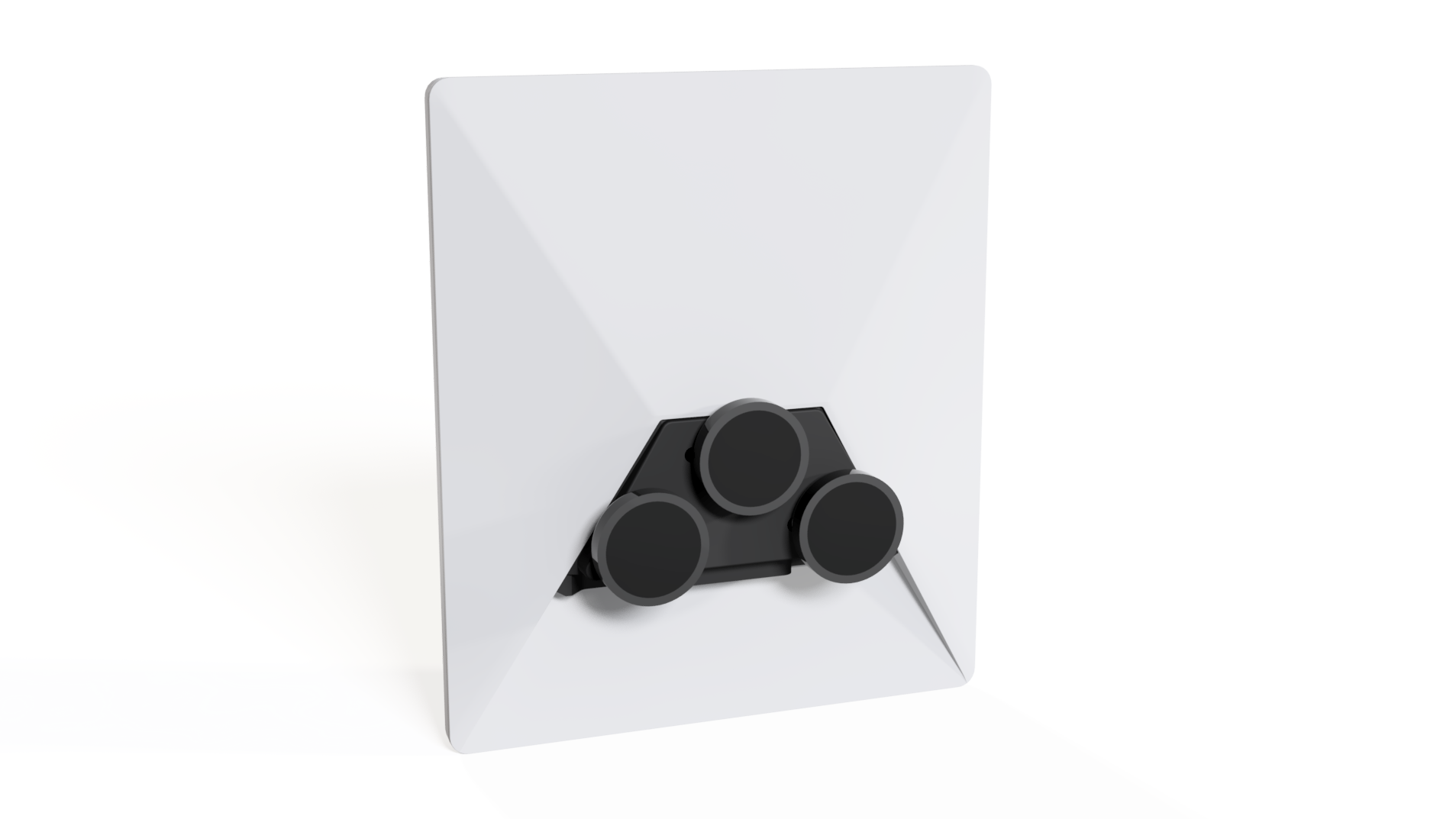

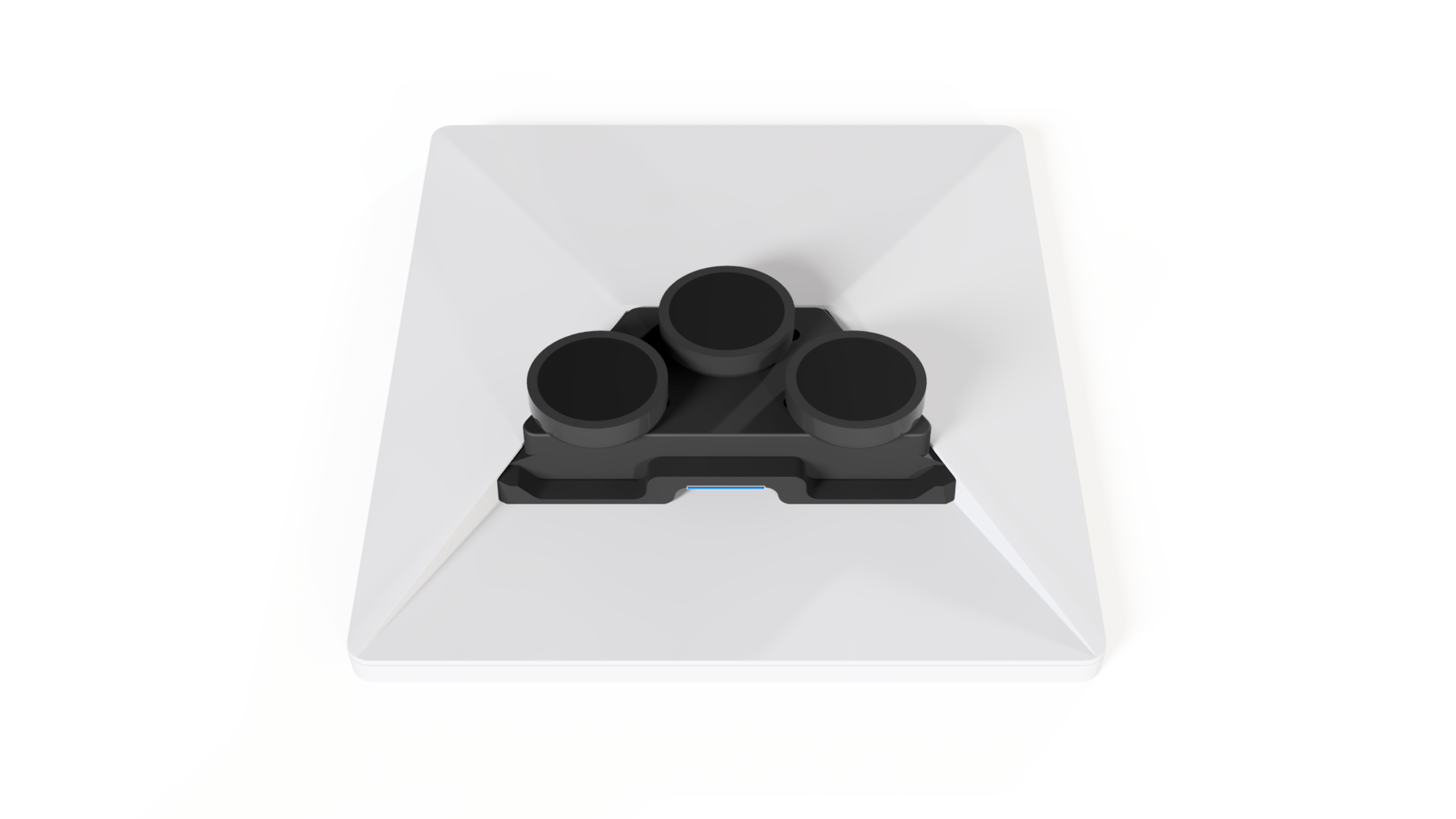

- Includes 3x Powder-Coated Steel Encased Ceramic Magnets
- Maximum Pull Strength: 48 lbs per magnet

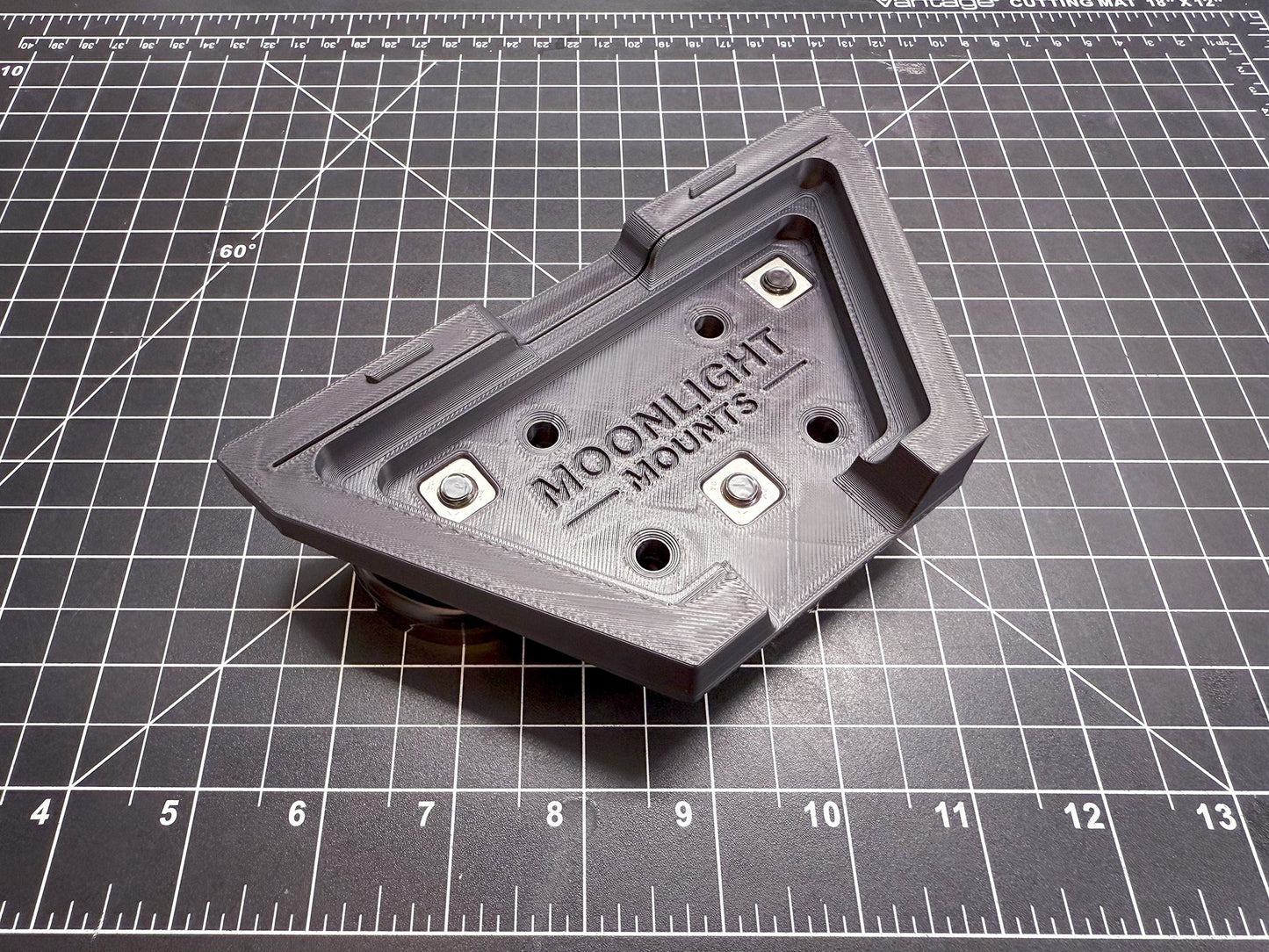

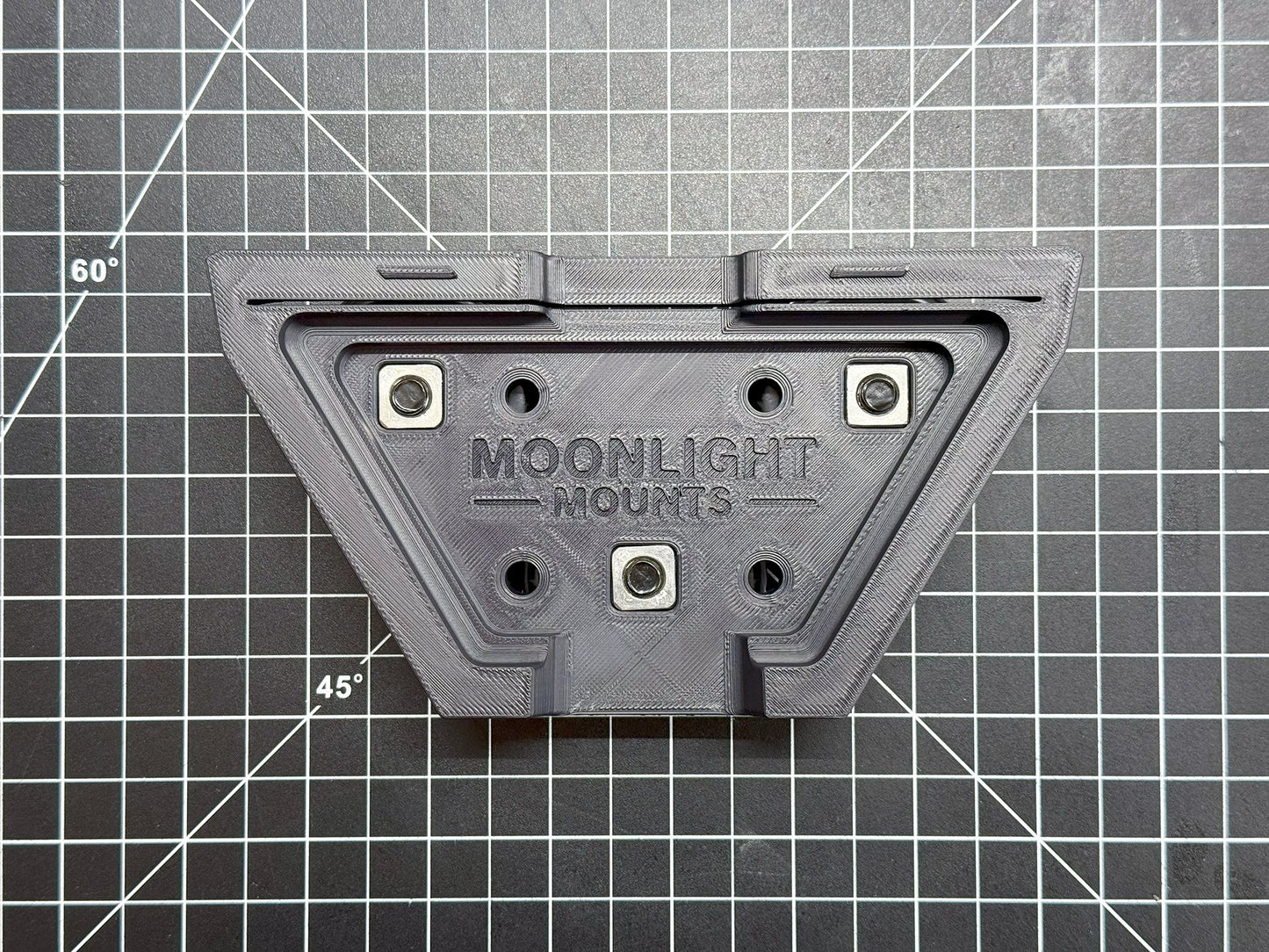

- Includes 3x Stainless Steel M8 Square Nuts
- Instant attachment to metallic surfaces
Specifications:
- Material: High-Performance ASA Polymer
- Compatibility: Starlink Mini
Ideal Applications:
- Vehicles (RVs, Trucks, Boats)
- Mobile Workstations
- Temporary and permanent installations
- Emergency Communications
- Outdoor Work Environments
Included Components:
- 1x ASA Hybrid Mount Base
- (Magnetic Mounting Method Only) 3x Powder-Coated Steel Ceramic Magnets
- (Magnetic Mounting Method Only) 3x Stainless Steel M8 Square Nuts
Performance Highlights:
- Vibration-Resistant Design
- UV-Stable Materials
- Precision-Engineered Fitment
- Multiple Mounting Configurations
Installation
Installation
Option 1 - Direct Mounting:
- Select mounting location with solid, flat surface
- Mark and drill 7mm mounting holes
- Align mount and secure with appropriate hardware
- Attach to Starlink Mini by sliding the Starlink Mini dish onto the mount
- To detech, lift up on the back side of the mount and pull the dish off the mount.
-
Recommended Sealant: For optimal waterproofing, we recommend using a high-quality, flexible sealant such as Pro Flex RV Flexible Sealant. This product offers excellent adhesion and flexibility, ensuring a long-lasting, weather-resistant seal.

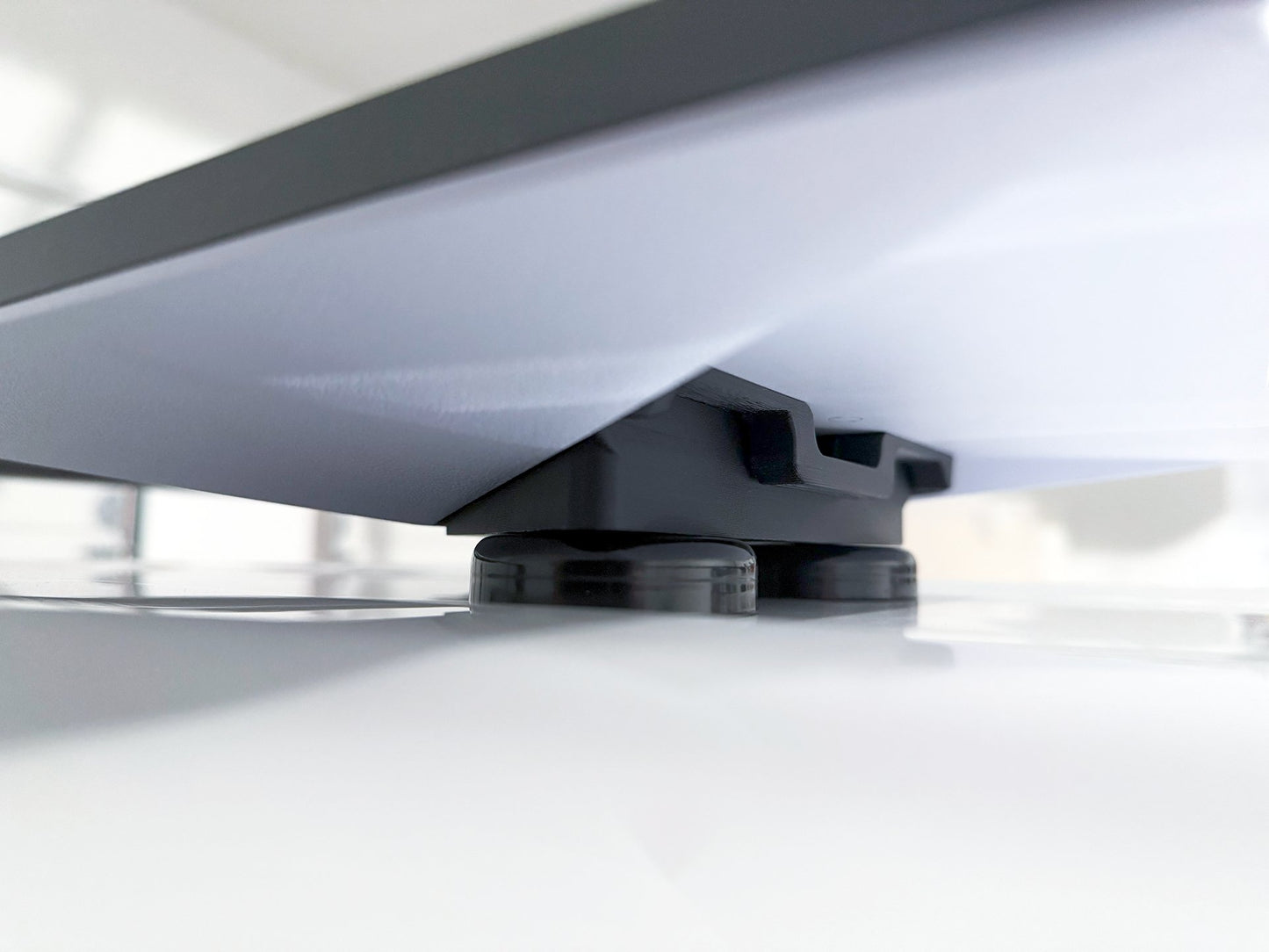

Option 2 - Magnetic Mounting:
- Clean target metallic surface thoroughly
- Align mount and secure with appropriate hardware
- Attach to Starlink Mini by sliding the Starlink Mini dish onto the mount
- To detech, lift up on the back side of the mount and pull the dish off the mount.
- Stationary Use Only: Not to be used while vehicle is in motion. Improper use may result in damage to your vehicle, the mount, or the Starlink Mini device, and could pose a safety hazard to you and others on the road. Always ensure all magnets are in full contact with a clean, flat steel surface for maximum hold. Moonlight Mounts is not responsible for any damages or injuries resulting from use of this product.
Designed and Printed In-House
Designed and Printed In-House
Every Moonlight Mounts product is designed and 3D printed in-house just outside Atlanta, Georgia, backed by 12+ years of 3D printing experience. Made in the USA — produced in 1–3 business days, with spare parts available individually.
Frequently asked questions
Frequently asked questions
Should I choose the screw-in or magnetic version?
Should I choose the screw-in or magnetic version?
Screw-in for a permanent spot — it fastens through four 7 mm holes into any solid flat surface. Magnetic if you want to move the mount between steel surfaces without drilling.
Can I drive with it mounted?
Can I drive with it mounted?
No. This mount is for stationary use only — it is not to be used while the vehicle is in motion.
How is this different from the full Magnetic Mount?
How is this different from the full Magnetic Mount?
The hybrid uses three 48 lb magnets and adds the option of screwing it down permanently; the full Magnetic Mount uses four magnets for 192 lb of hold and stays purely magnetic.
Does it require drilling?
Does it require drilling?
Only the screw-in configuration. The magnetic configuration attaches to steel with no drilling at all.
Is a 3D-printed mount strong enough?
Is a 3D-printed mount strong enough?
Yes. Strength in a printed part comes from how thick its walls are and how much material is inside, and ours are built well beyond a typical hobby print: every part is printed in UV-resistant ASA with solid outer walls about 2.5 mm thick (six passes of material around every edge), a dense 75% internal fill, and solid top and bottom surfaces. Every design is tested in real-world conditions by full-time travelers.
Where is it made?
Where is it made?
Every mount is designed and printed in-house just outside Atlanta, Georgia, from UV-resistant ASA.
Our guarantee
Our guarantee
Every Moonlight Mounts product is designed and printed in-house. Manufacturing defects and missing parts are replaced free of charge, with no time limit. Not the right fit? Returns are accepted within 30 days of delivery, including sale items: send us your order number through the contact form, and we’ll reply with approval and the return address. See our refund policy for details.
Highlights
- Designed & printed in-house near Atlanta, Georgia
- Two mounting options — screw-in or magnetic
- Quick-release dish attachment
- Corrosion-resistant for harsh environments
- UV-resistant ASA
Specifications
| Compatible device | Starlink Mini (dish sold separately) |
|---|---|
| Mounting options | Direct surface mount (4× 7 mm screw holes) or magnetic (3× 48 lb magnets) |
| Magnetic option | 3× powder-coated steel encased ceramic magnets, 3× stainless steel M8 square nuts |
| Mounting surface (magnetic) | Steel only — magnets require a clean, flat steel surface |
| Use | Stationary use only — not to be used while the vehicle is in motion |
| Material | UV-resistant ASA |
| Construction | Solid outer walls about 2.5 mm thick (six passes of material around every edge), a dense 75% internal fill, and solid top and bottom surfaces — far heavier-built than a typical hobby print |
| Made in | Designed and printed in-house near Atlanta, Georgia, USA |
