Starlink V5 Roof Mount - Residential Gen 5 Version 5 - Flat Screw-In Surface Mount Kit for Permanent Installation
Starlink V5 Roof Mount - Residential Gen 5 Version 5 - Flat Screw-In Surface Mount Kit for Permanent Installation
Couldn't load pickup availability
Transform your home, RV, or van into a high-speed internet hub with our Starlink V5 Roof Mount. This permanent surface mount fits the Starlink V5 (also known as Gen 5 or Version 5) and delivers a sleek, professional installation.
⚠️ Not compatible with our Starlink V5 Hail Guard.
Key Features
- Weather-Resistant: Durable ASA material stands up to sun, rain, and snow

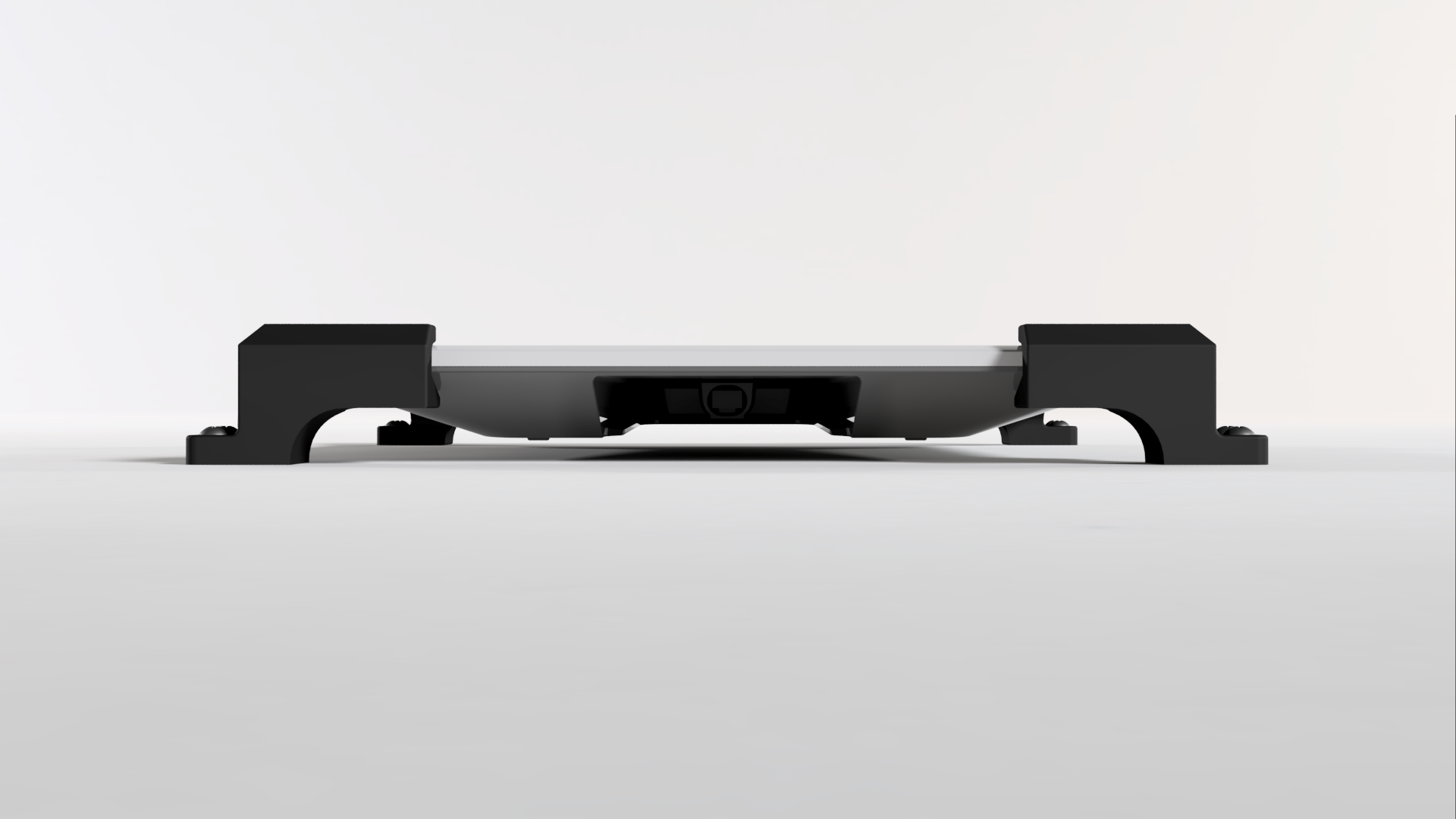

- Low-Profile Design: Blends with your roofline and allows natural airflow to keep your dish cool
- Universal Roof Compatibility: Works with shingle, metal, and flat roofs
- Secure Four-Corner Mounting: Redundant securing points for stability in high winds

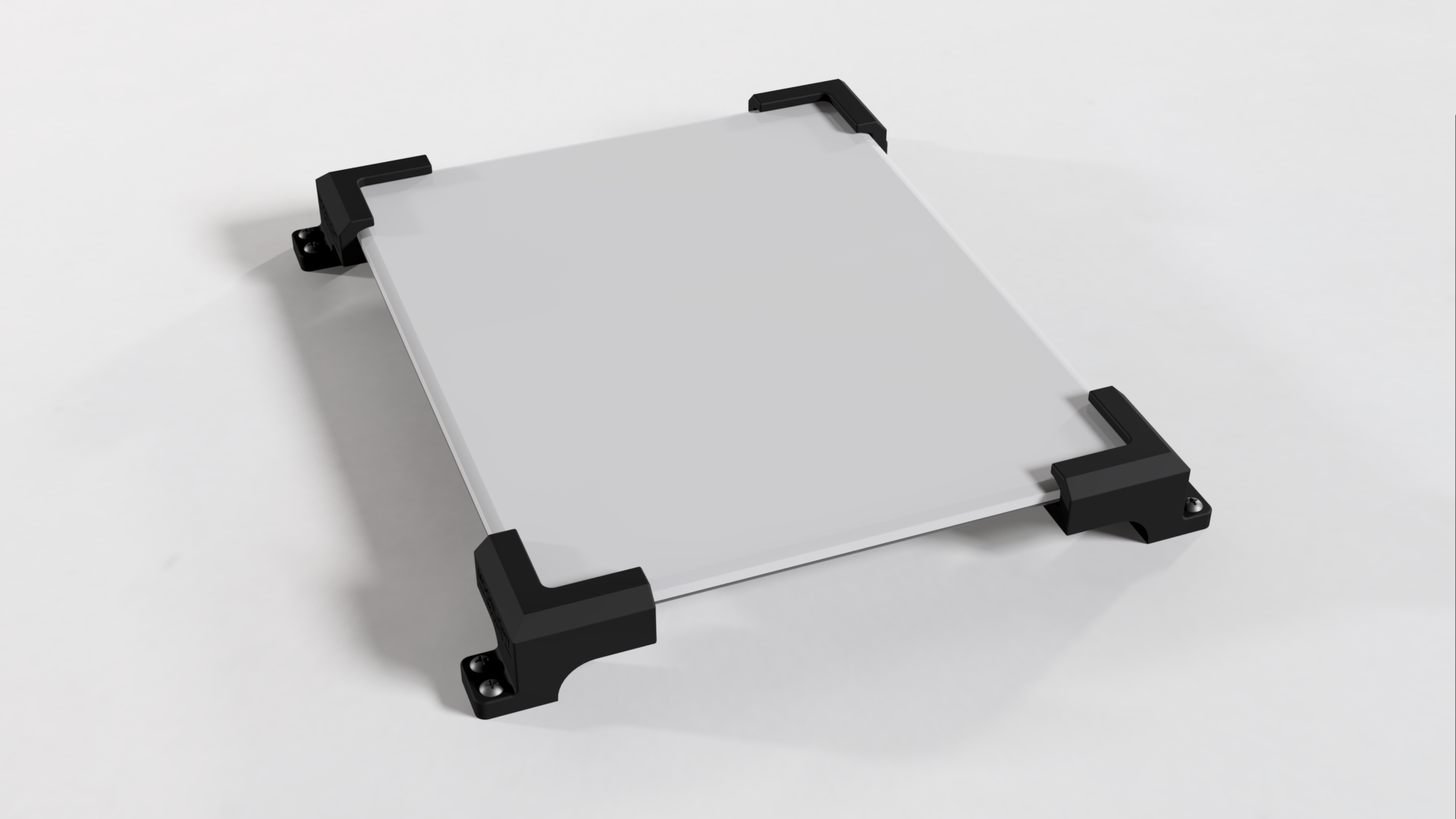

Roof orientation: This mount holds the dish flat against the roof, so your roof decides where the dish points. Starlink dishes aim at the part of the sky with the most satellites, which in the US means toward the north, tilted about 20 degrees, and the Starlink app asks you to rotate the dish to within a few degrees of that target. Flat roofs on houses, RVs, and vans work well: rotate the mount to match the app's target before you screw it down. A north-facing roof slope is close to ideal. A roof that slopes toward the south tilts the dish away from the satellites and puts the ridge in its view, so expect obstruction dropouts and a misaligned alert. Before ordering, set the dish where the mount will go and run the Starlink app's obstruction check.
Specifications
Dimensions: 405.39 mm (15.96 in) x 363.368 mm (14.306 in) x 53.968 mm (2.125 in)
Screw Holes: 6mm diameter, 2 per corner piece
What's Included
- 4x ASA mount brackets (labeled 1-4, choose your color)
- 8x 18-8 stainless steel oval head screws (#12 x 2")
Compatibility
- Designed for Starlink V5 (dish sold separately)
- Suitable for all weather conditions
- Not compatible with our Starlink V5 Hail Guard
Installation
Installation
- Choose a location with a clear sky view

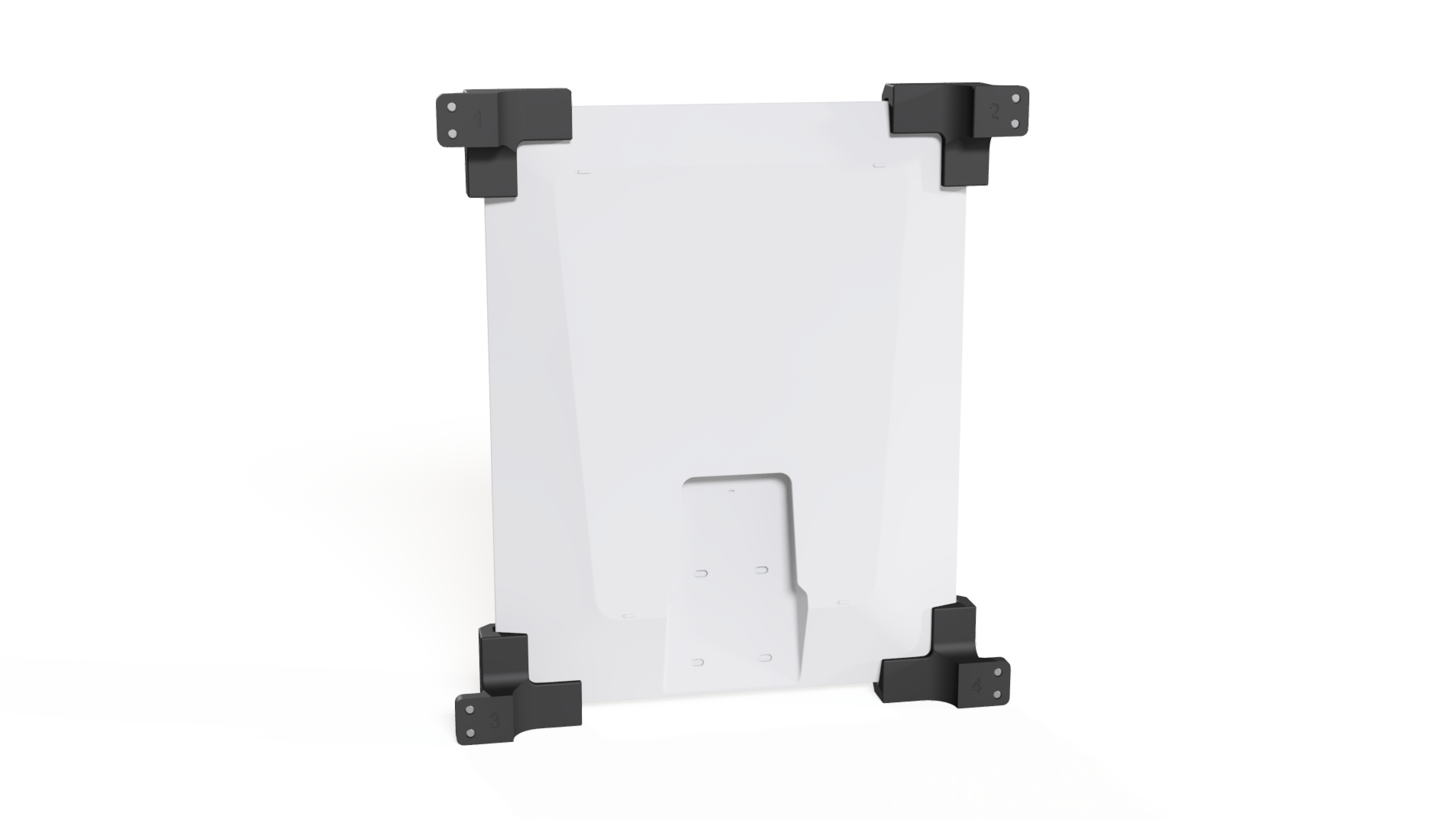

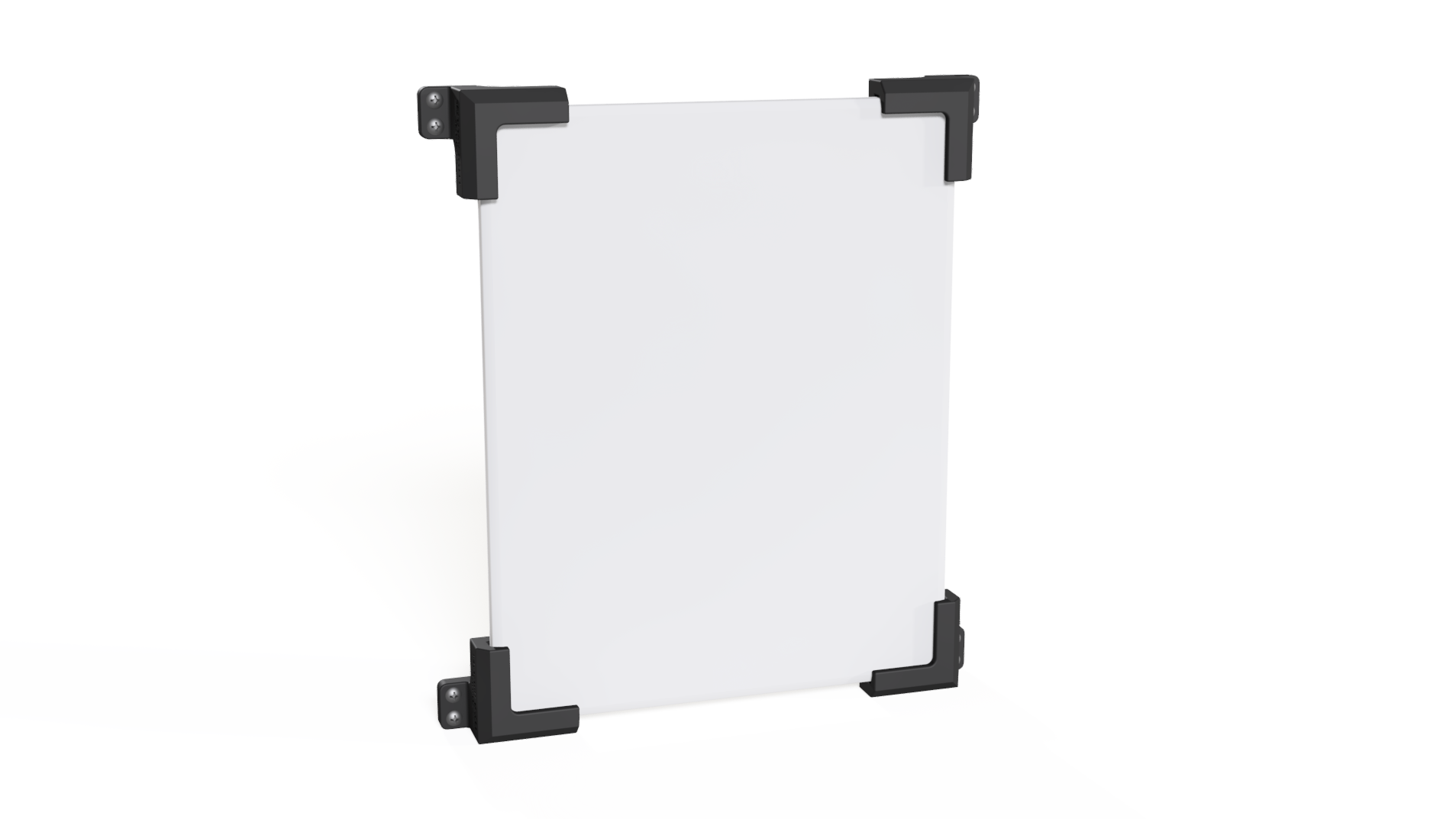

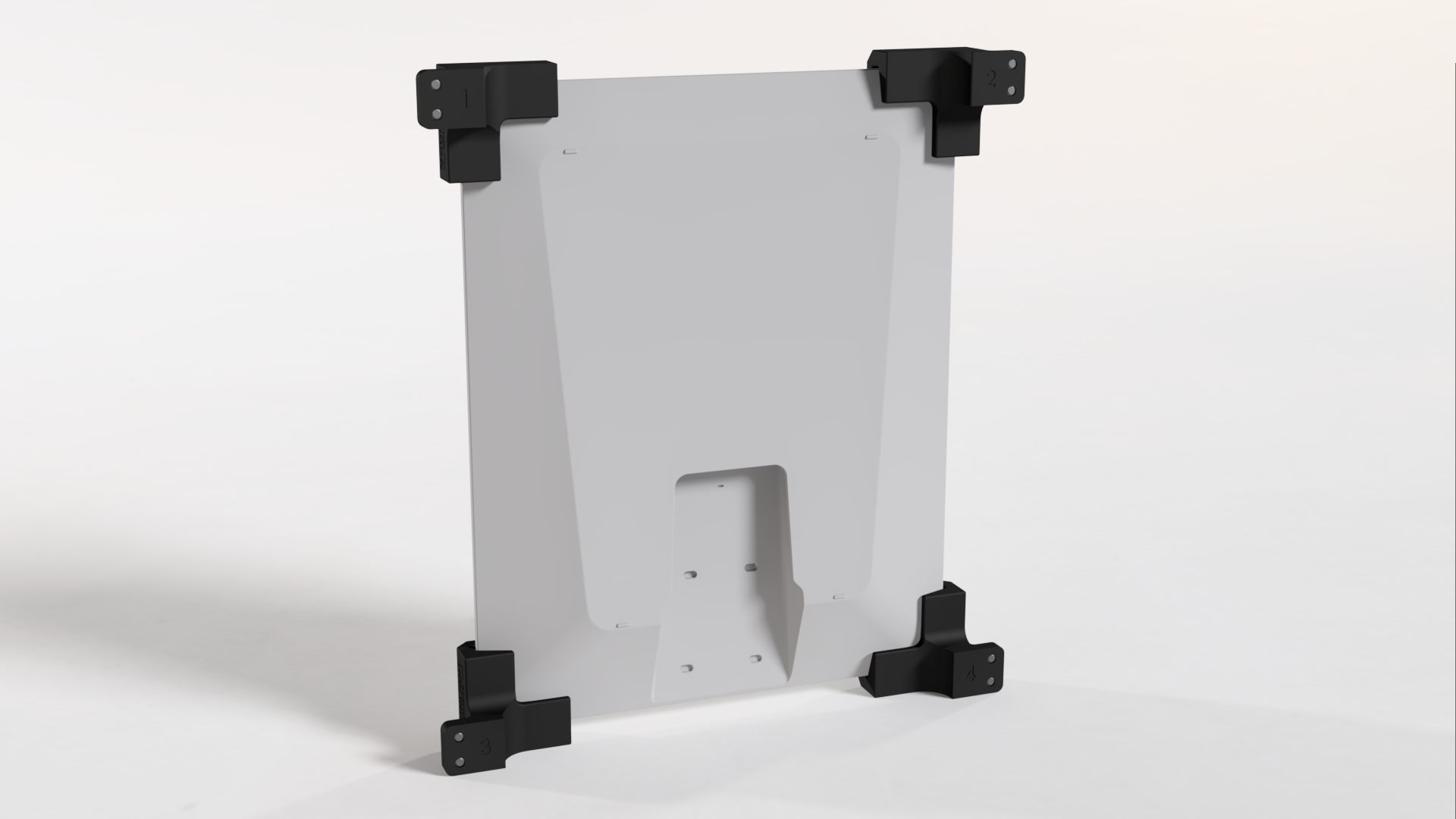

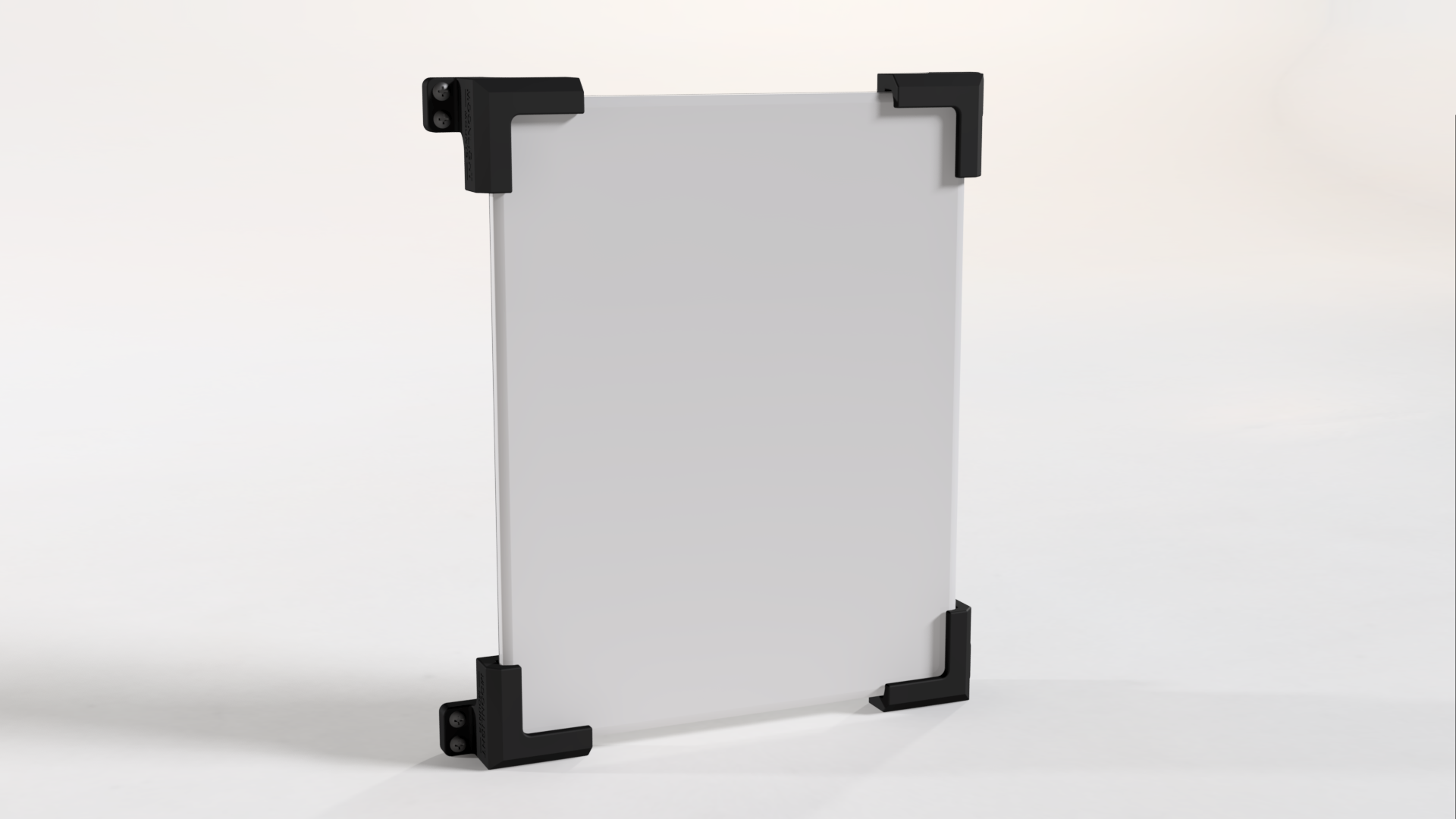

- Position the numbered corner pieces (1-4) as labeled when facing the back of the dish:
- Part 1 = Top-Left
- Part 2 = Top-Right
- Part 3 = Bottom-Left
- Part 4 = Bottom-Right
- Insert the Starlink V5 and secure each corner with two #12 screws
- Apply sealant under and around each mounting point for waterproofing
Note: Do not over-tighten screws. Professional installation recommended.
Recommended Sealant
Use a flexible sealant like Pro Flex RV Flexible Sealant for a long-lasting, weather-resistant seal.
Designed and Printed In-House
Designed and Printed In-House
Every Moonlight Mounts product is designed and 3D printed in-house just outside Atlanta, Georgia, backed by 12+ years of 3D printing experience. Made in the USA — produced in 1–3 business days, with spare parts available individually.
Frequently asked questions
Frequently asked questions
Can I use this together with the V5 hail guard?
Can I use this together with the V5 hail guard?
No — the two products both occupy the dish's corners, so it's one or the other. Choose the roof mount for a permanent bolted installation, or the hail guard for impact protection.
Which Starlink dish does this fit?
Which Starlink dish does this fit?
The Starlink V5 — the Version 5 (Gen 5) residential dish released in 2026. For the Standard 4 Gen 3 or the Mini, see our other roof mounts.
Is this a permanent installation?
Is this a permanent installation?
Yes. Each of the four corners bolts down with two stainless steel screws. Apply a flexible sealant such as Pro Flex RV under and around each mounting point, don't over-tighten, and consider professional installation.
Which way does my roof need to face?
Which way does my roof need to face?
This mount holds the dish flat against the roof, so your roof decides where the dish points. Starlink dishes aim at the part of the sky with the most satellites, which in the US means toward the north, tilted about 20 degrees, and the Starlink app asks you to rotate the dish to within a few degrees of that target. Flat roofs on houses, RVs, and vans work well: rotate the mount to match the app's target before you screw it down. A north-facing roof slope is close to ideal. A roof that slopes toward the south tilts the dish away from the satellites and puts the ridge in its view, so expect obstruction dropouts and a misaligned alert. Before ordering, set the dish where the mount will go and run the Starlink app's obstruction check.
Is a 3D-printed mount strong enough?
Is a 3D-printed mount strong enough?
Yes. Strength in a printed part comes from how thick its walls are and how much material is inside, and ours are built well beyond a typical hobby print: every part is printed in UV-resistant ASA with solid outer walls about 2.5 mm thick (six passes of material around every edge), a dense 75% internal fill, and solid top and bottom surfaces. Every design is tested in real-world conditions by full-time travelers.
Where is it made?
Where is it made?
Every mount is designed and printed in-house just outside Atlanta, Georgia, from UV-resistant ASA.
Our guarantee
Our guarantee
Every Moonlight Mounts product is designed and printed in-house. Manufacturing defects and missing parts are replaced free of charge, with no time limit. Not the right fit? Returns are accepted within 30 days of delivery, including sale items: send us your order number through the contact form, and we’ll reply with approval and the return address. See our refund policy for details.
Highlights
- Designed & printed in-house near Atlanta, Georgia
- Four-corner bolt-down mounting
- 8× 18-8 stainless steel screws included
- Low-profile design keeps natural airflow
- UV-resistant ASA in 18 colors
Specifications
| Compatible device | Starlink V5 (Gen 5 / Version 5 residential, dish sold separately) |
|---|---|
| Dimensions | 405.39 × 363.368 × 53.968 mm (15.96 × 14.31 × 2.125 in) |
| Screw holes | 6 mm diameter, 2 per corner piece |
| Hardware | 8× 18-8 stainless steel oval head screws (#12 × 2") |
| Roof compatibility | Shingle, metal, and flat roofs |
| Roof orientation | Flat roofs and north-facing slopes (US). A south-facing slope tilts the dish away from the satellites — expect dropouts. Run the Starlink app's obstruction check at the spot before ordering |
| Compatibility note | Not compatible with the V5 hail guard |
| Material | UV-resistant ASA |
| Construction | Solid outer walls about 2.5 mm thick (six passes of material around every edge), a dense 75% internal fill, and solid top and bottom surfaces — far heavier-built than a typical hobby print |
| Made in | Designed and printed in-house near Atlanta, Georgia, USA |
