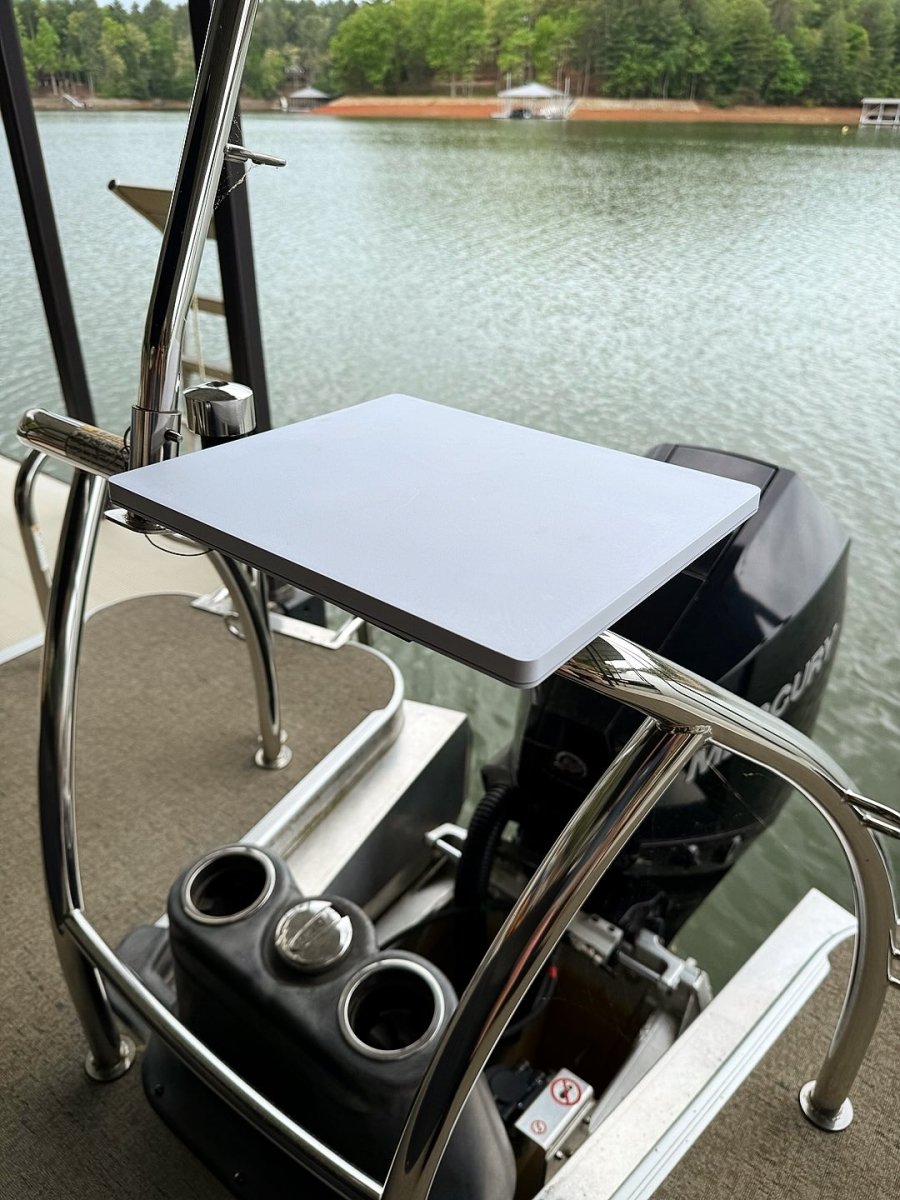

How to Mount Starlink Mini on a Boat Rail
Getting Starlink Mini running on a boat opens up reliable internet on the water, but a marine install has different challenges than a vehicle roof. Salt air, vibration, spray, and the need to remove the dish quickly when docking all factor into how you mount it. This guide covers the best approach for rail installs.
Before You Order: Measure Your Rail
This is the step that trips people up most often. Rail diameter varies a lot between boats, and the pole bracket has to match yours.
The Starlink Mini Boat and Rail Mount is available in nine pole sizes:
- 5/8", 7/8", 15/16", 1", 1.25", 1.375", 1.5", 1.575" (40 mm), and 2"
Take a caliper or a tape measure to your rail and measure the outside diameter before ordering. Don't estimate it from a photo.
Note on the larger sizes: the 1.5", 1.575" (40 mm), and 2" brackets mount vertically due to size constraints, so plan your position accordingly.
The mount is modular — the base bracket that holds the dish is separate from the pole bracket that clamps the rail. If you move between boats with different rail sizes, you can buy additional pole brackets rather than a second complete mount.
What You'll Need
- Starlink Mini dish and cable
- Starlink Mini Boat and Rail Mount in your rail size
- 4 mm hex (Allen) wrench
Step 1: Pick Your Rail Position
Choose a section of rail with a clear, unobstructed view of the sky. Avoid positions directly behind a mast, bimini frame, or radar arch as these will cause signal obstructions. The stern rail is a common choice on powerboats. On sailboats, a pushpit rail position works well when the boom is not in the way.
Check the Starlink app's obstruction tool before committing to a position. Walk around the boat with your phone and identify where the sky view is cleanest.
Step 2: Attach the Rail Mount
The pole bracket ships pre-installed with four socket head screws left loose for exactly this step.
- Remove the top half of the pole bracket using a 4 mm hex wrench.
- Clamp the top half and the rest of the mount around your rail.
- Secure it with the four socket head screws you just removed, hand-tightening with the 4 mm hex wrench.
Snug and firm is the target. Do not lean on the wrench — over-tightening on thin-wall rails can deform the rail or the bracket, and it doesn't improve grip. The mount should not rotate or slide along the rail when you apply lateral pressure. If your rail has a slight curve, adjust the clamp angle before fully tightening.
Check the clamp again after your first trip underway, as vibration can loosen hardware slightly on initial use.
Step 3: Attach the Starlink Mini
Pull back the dual spring plungers, align the dish with the mount, and slide the Starlink Mini on until the plungers snap into place. Give it a firm shake to check for any play. The dish should face the sky with as wide a view as possible, not angled toward a cabin wall or obstruction.
The spring plungers are what make this mount quick to remove — pull them back and the dish lifts straight off, which matters when you're coming into a marina.
Step 4: Route and Secure the Cable
Cable management matters more on a boat than on a vehicle. A loose cable can snag on cleats, get caught in a winch, or create a trip hazard on deck. Use marine-grade cable clips to run the cable along the rail or toerail, then bring it inboard through a companionway or cable port. Avoid running cable across open deck areas where it can be stepped on.
Leave a small service loop near the dish connection point so the cable has some flex when the dish is removed or repositioned.
Step 5: Test Before Leaving the Dock
Power up the Starlink Mini and confirm connectivity before casting off. Check the obstruction map in the app and note any blind spots caused by your rigging or superstructure. This is also a good time to confirm the cable run is secure and nothing is chafing against a sharp edge.
Marine-Specific Tips
- Rinse with fresh water after every trip in salt. Rinse the mount and its hardware when you rinse the boat. Salt attacks fasteners over time, and no fastener finish survives salt indefinitely without maintenance.
- Remove the dish when entering a marina, going under bridges where it could hit, or in rough weather where the dish could be damaged by spray or impact.
- The mount body is UV-resistant ASA, built for constant sun and salt exposure — but it still benefits from a rinse.
- In anchorages, the boat will swing with the wind. The Starlink Mini handles this well, but check that your cable has enough slack to accommodate the dish rotating slightly with the mount.
No Suitable Rail?
If your boat doesn't have rail where you need the dish, the Compact Suction Cup Mount is designed for small overhead hatches and skylights — a 16.5 × 10.25 inch footprint on interior glass, with no drilling and nothing permanent.
Related Guides
Need a Permanent Mount?
If you have a larger vessel or want to permanently mount the Starlink Mini to the roof, cabin top, or hardtop of your boat, the rail clamp approach may not be the right fit. A screw-in mount gives you a rock-solid, low-profile installation that won't shift underway and doesn't rely on rail access.
